External Audio Source Connection -R199-, AUX IN JACK, REMOVING AND INSTALLING

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Trim Removal Wedge: 3409

Removing:

Perform the Following Steps:

-- Turn off the ignition and all electrical equipment.

-- Remove the rear trim from the center console. Refer to CENTER CONSOLE REAR TRIM, REMOVING AND INSTALLING .

-- Remove the air guide intermediate piece for the rear vents from the center console.

-- Open the center armrest.

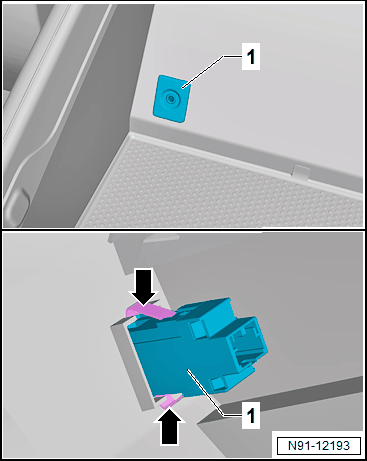

-- Press the clips -arrows- together on the External Audio Source Connection -R199- -1- using the : 3409 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- At the same time, push the External Audio Source Connection -R199- -1- forward in the center console storage compartment.

-- Disconnect the connector -arrow-.

-- Remove the external audio source connection from the vehicle.

Fig 1: External Audio Source Connection

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing:

Install in reverse order of removal.
