Overview - Antenna Modules

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

The antenna modules are installed on the rear windows on the top and bottom. The technical version is adapted to the vehicle equipment.

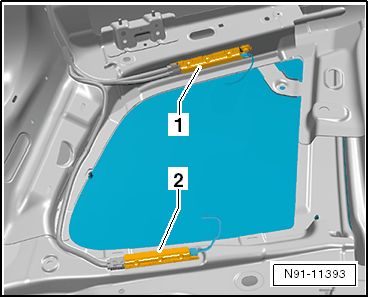

Fig 1: Identifying Side Window Antenna Modules Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Antenna module on the upper rear side window
Antenna module on the lower rear side window
