Roof Antenna, Removing And Installing: Installing:

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When inserting the roof antenna, ensure that the seal is properly seated. Both guide protrusions of the seal must be seated in the appropriate holes -arrows- in antenna base.

Fig 1: Identifying Roof Antenna And Seal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

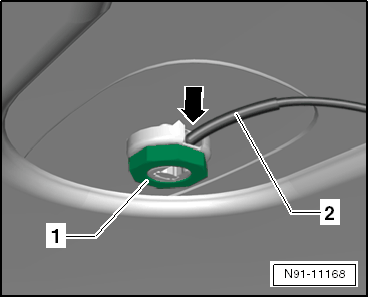

After inserting the roof antenna, ensure that the antenna cable -2- is correctly routed through the opening -arrow- in the retaining nut.

Fig 2: Identifying Roof Antenna Nut

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Depending on the antenna version, several wire connections are possible.

Remaining installation in reverse order of removal.
