Seat Functions Control Module, Removing And Installing: Removing
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Switch off the ignition.
-- Unscrew the front seat and tip to the rear with the wires attached. Refer to FRONT SEAT, REMOVING AND INSTALLING .

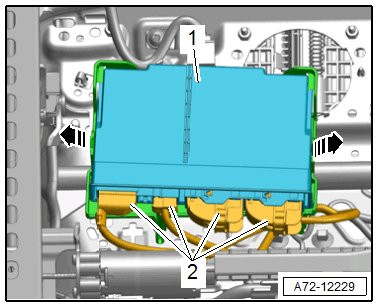

Standard/Sport/Super Sport seat:
-- Open the tabs in direction of -arrows-.
-- Remove the control module -1- from the bracket.
-- Release the connector safety catch and disconnect the connectors -2-.

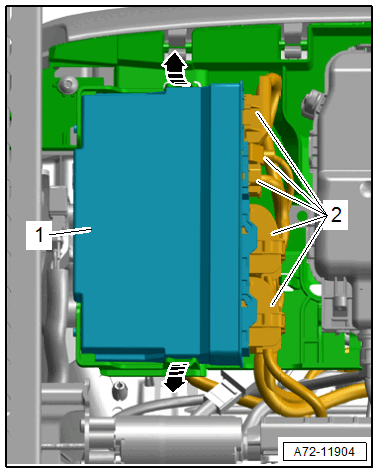

Comfort Seat:
-- Release the retaining tabs -arrows-.
-- Remove the control module -1- from the bracket.
-- Release the connector safety catch and disconnect the connectors -2-.
