Ionizer Control Module -J897-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Front passenger side instrument panel carrier plate. Refer to OVERVIEW - INSTRUMENT PANEL .

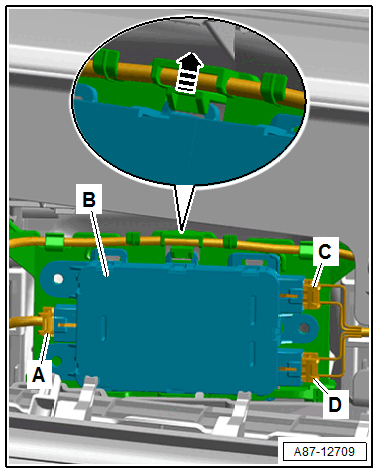

-- Release the catches -arrow-.
-- Remove the Ionizer Control Module -J897- -B- and disconnect the connectors -A, C, D-.
