A/C System Particulate Matter Concentration Sensor -G930-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .
-- Remove the fastening plug -A-.
-- Remove the front passenger side fuse panel cover.
-- Loosen the insulation -B- from the heater and A/C unit air intake manifold and remove.

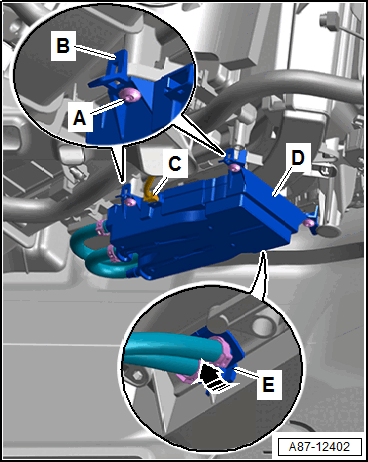

-- Disconnect the connector -C-.
-- Remove the bolts -A-.
-- Release the retainers -B- and move the sensor -D- to the side.
-- Release the retainer -arrow- and disengage the connection -E-.
-- Remove the sensor -D-.
