Outside Air Temperature Sensor -G17-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Switch off (deactivate) the "parking air conditioner". Refer to Owner's Manual.

-- Switch off the ignition.

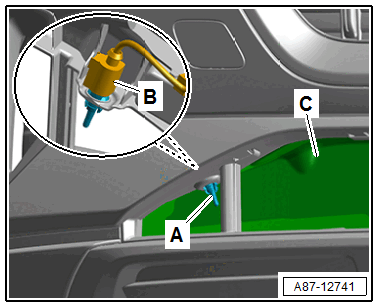

-- Remove the Outside Air Temperature Sensor -G17- -A- from the bracket.

GWWA87-12741Courtesy of AUDI OF AMERICA, LLC

-- If necessary, push the air duct -C- slightly toward the rear.

-- Disconnect the connector -B- on the temperature sensor -A- and remove the temperature sensor.
