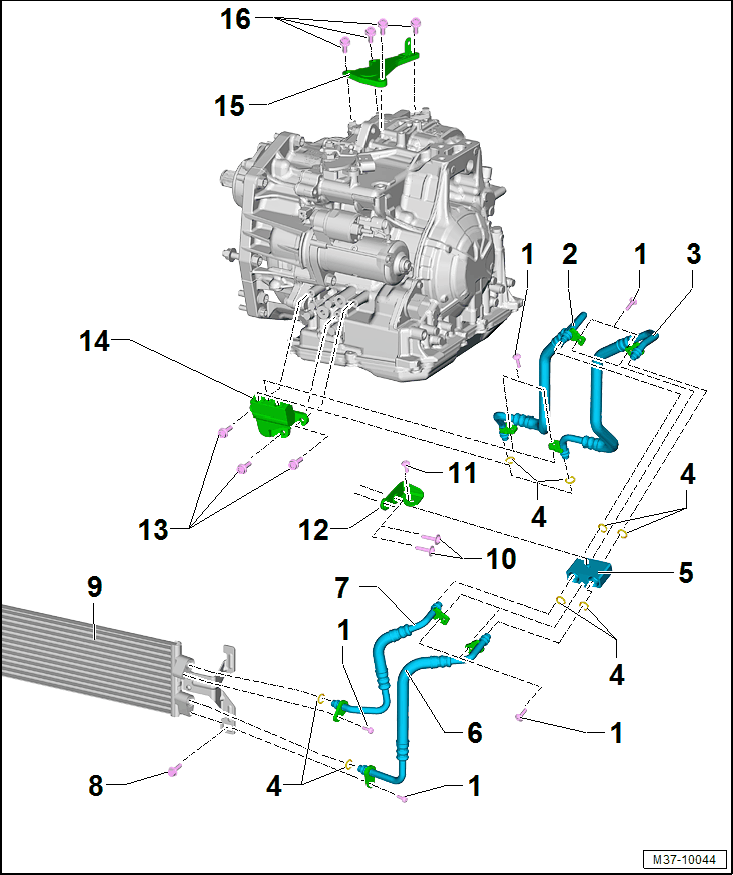

Overview - ATF Circuit

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bolt
- 8 Nm
- M6 x 22
ATF Line
- From the thermostat to the adapter
- Removing and installing. Refer to ATF LINES, REMOVING AND INSTALLING .
ATF Line
- From the thermostat to the adapter
- Removing and installing. Refer to ATF LINES, REMOVING AND INSTALLING .
O-rings
- Replace after removing
Adapter
ATF Line
- From the adapter to the ATF cooler
- Removing and installing. Refer to ATF LINES, REMOVING AND INSTALLING .
ATF Line
- From the adapter to the ATF cooler
- Removing and installing. Refer to ATF LINES, REMOVING AND INSTALLING .
Bolt
- 4.5 Nm
- Quantity 2, M6 x 17
ATF Cooler
- Removing and installing. Refer to ATF COOLER, REMOVING AND INSTALLING .
Bolt
- 20 Nm
- Quantity 2, M6 x 30
Bolt
- 8 Nm
- M6 x 22
Bracket
Bolt
- 20 Nm
- Quantity: 3, M8 x 25
Thermostat
- Replace after removing the O-rings
- Removing and installing. Refer to THERMOSTAT, REMOVING AND INSTALLING .
Adapter
Bolt
- 20 Nm
- Quantity: 4, M8 x 25
