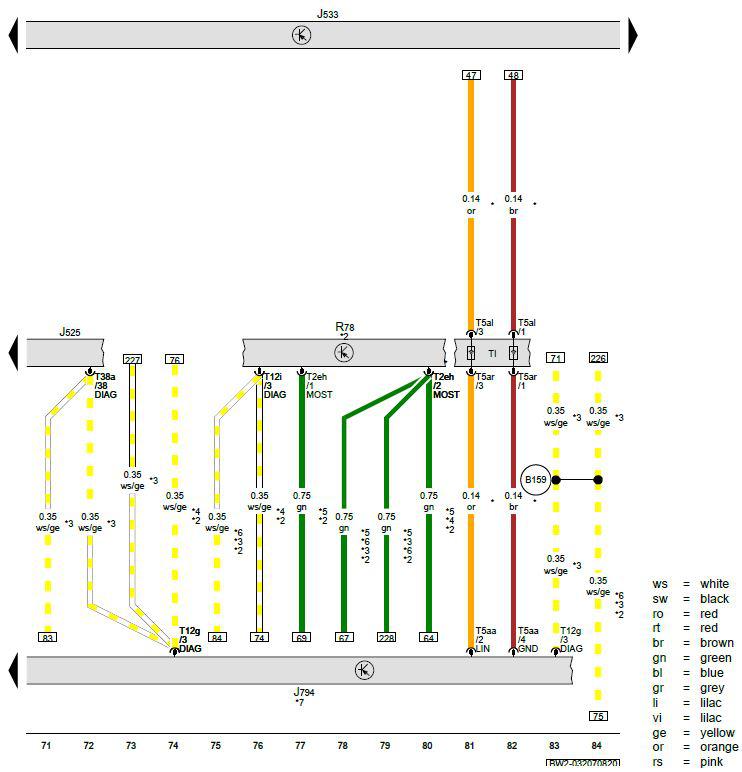

Digital Sound System Control Module, Data Bus on Board Diagnostic Interface, Information Electronics Control Module 1
J525 - Digital Sound System Control Module
J533 - Data Bus on Board Diagnostic Interface
J794 - Information Electronics Control Module 1
R78 - TV Tuner
T2eh - 2-Pin Connector, Black
T5aa - 5-Pin Connector, Blue
T5al - 5-Pin Connector, Black
T5ar - 5-Pin Connector, Black
T12g - 12-Pin Connector, Gray
T12i - 12-Pin Connector, Black
T38a - 38-Pin Connector, Black
TI - Coupling Point in Interior
B159 - Diagnostic Connection (in Interior Wiring Harness)
* - For Vehicles with Korea Equipment
*2 - For Vehicles with TV Tuner
*3 - Depending on Equipment
*4 - For Vehicles Without Sound System
*5 - Fiber Optic Cable
*6 - For Vehicles with Sound System
*7 - Different Connector Color Possible
