Halogen Headlamps, Adjusting

NOTE:

Adjusting the headlamps is invoiced separately.

Left Headlamp, Adjusting:

Adjusting screws for the right headlamp are a mirror image.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

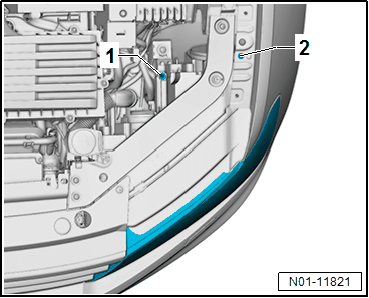

Adjusting screw (inner hex socket) for height adjustment of low beam cut-off line - 1-.
Adjustment screw (inner hex socket) for side adjustment of low beam cut-off line - 2- (sealed on SAE headlamps).

-- First turn adjustment screw - 1- to adjust height of cut-off line.

-- Then the lateral adjustment must be checked and, if necessary, correct using the adjusting screw - 2-.
