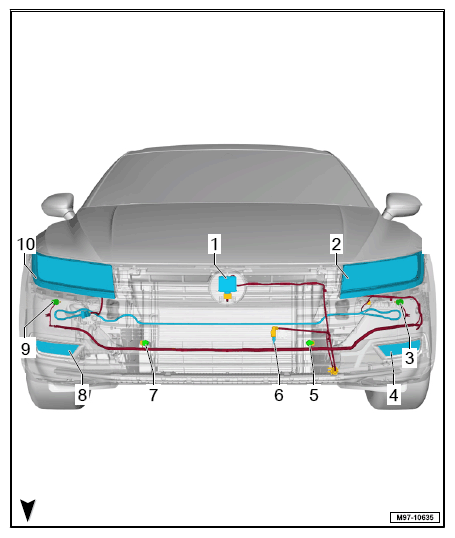

Vehicle Front

  1. Distance regulation control module -J428-
  2. Left front headlamp -MX1-
    • Left headlamp power output module -J667-
    • Left headlamp beam adjustment motor -V48-
    • Left adaptive cornering lamp motor -V318-
    • Left LED headlamp power output module 1 -A31-
  3. Left front parking aid sensor -G255-
  4. Left front fog lamp bulb -L22-
  5. Left front center parking aid sensor -G254-
  6. Outside air temperature sensor -G17-
  7. Right front center parking aid sensor -G253-
  8. Right front fog lamp bulb -L23-
  9. Right front parking aid sensor -G252-
  10. Right front headlamp -MX2-
    • Right LED headlamp power output module 1 -A27-
    • Right headlamp power output module -J668-
    • Right headlamp beam adjustment motor -V49-
    • Right adaptive cornering lamp motor -V319-
G12711643Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
