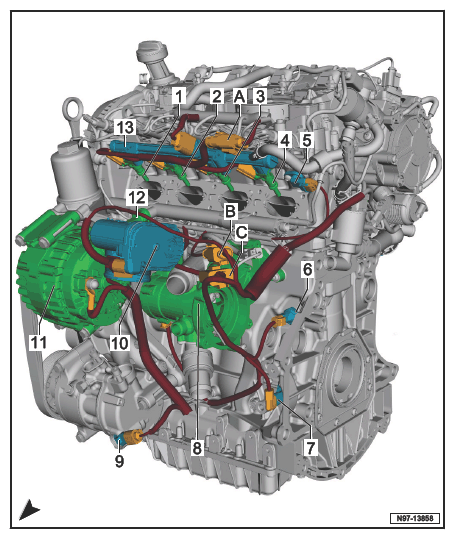

Front View

  1. Cylinder 1 fuel injector 2 -N532-
  2. Cylinder 2 fuel injector 2 -N533-
  3. Cylinder 3 fuel injector 2 -N534-
  4. Cylinder 4 fuel injector 2 -N535-
  5. Camshaft position sensor -G40-
  6. Oil pressure switch, level 3 -F447-
  7. Engine speed sensor -G28-
  8. Engine temperature control module -GX33-
    • Engine temperature control actuator -N493-
  9. A/C compressor regulator valve -N280-
  10. Throttle valve control module -GX3-
    • EPC throttle drive -G186-
    • EPC throttle drive angle sensor 1 -G187-
    • EPC throttle drive angle sensor 2 -G188-
  11. Generator with voltage regulator -CX1-
  12. Fuel pressure sensor -G247-
  13. Low fuel pressure sensor -G410-
G12710247Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
