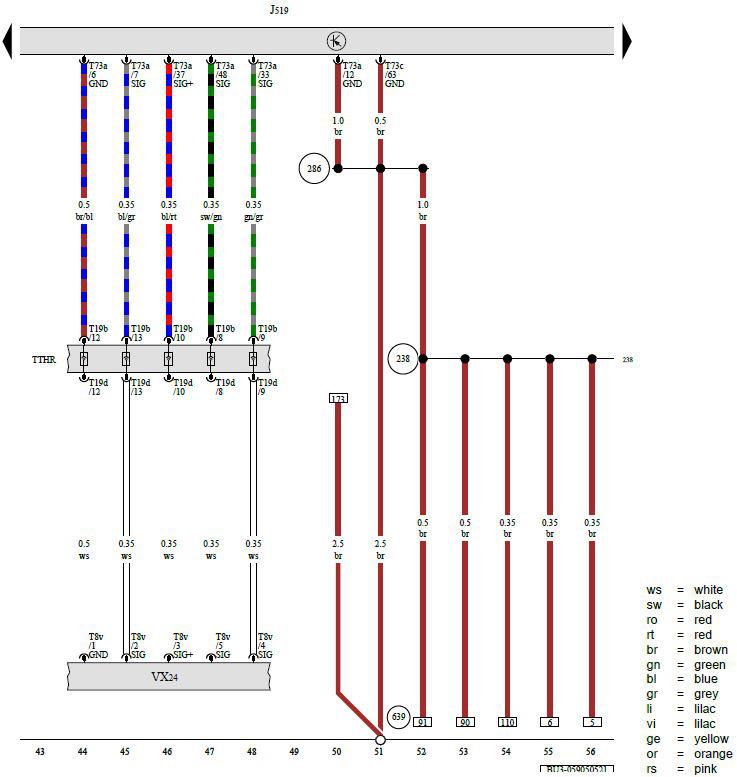

Vehicle Electrical System Control Module (2 Of 17)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J519 -  Vehicle Electrical System Control Module

T8v -  8-Pin Connector

T19b -  19-Pin Connector, Black

T19d -  19-Pin Connector

T73a -  73-Pin Connector

T73c -  73-Pin Connector

TTHR -  Right Rear Door Coupling Point

VX24 -  Right Rear Door Lock Unit

238 -  Ground Connection 1 (in Interior Wiring Harness)

286 -  Ground Connection 8 (in Interior Wiring Harness)

639 -  Ground Connection on Left A-Pillar
