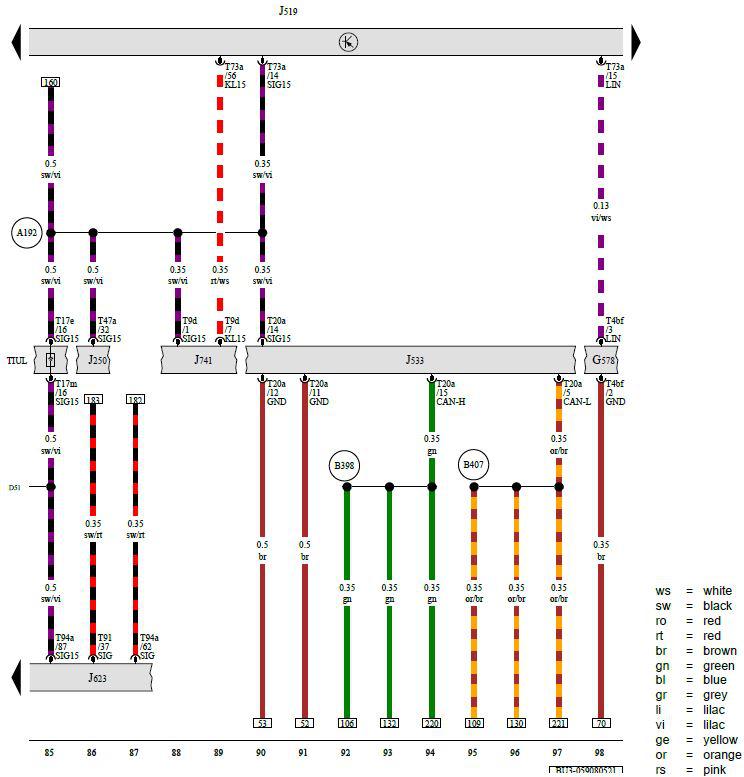

Vehicle Electrical System Control Module (5 Of 17)
G578 - Anti-Theft Alarm System Sensor
J250 - Electronic Damping Control Module
J519 - Vehicle Electrical System Control Module
J533 - Data Bus on Board Diagnostic Interface
J623 - Engine/Motor Control Module
J741 - Double Inverter Relay
T4bf - 4-Pin Connector
T9d - 9-Pin Connector
T17e - 17-Pin Connector, Blue
T17m - 17-Pin Connector, Blue
T20a - 20-Pin Connector
T47a - 47-Pin Connector
T73a - 73-Pin Connector
T91 - 91-Pin Connector
T94a - 94-Pin Connector
TIUL - Coupling Point in Interior, Bottom Left
A192 - Positive Connection 3 (15a) (in Instrument Panel Wiring Harness)
B398 - Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)
B407 - Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)
D51 - Positive Connection 1 (15) (in Engine/Motor Compartment Wiring Harness)
