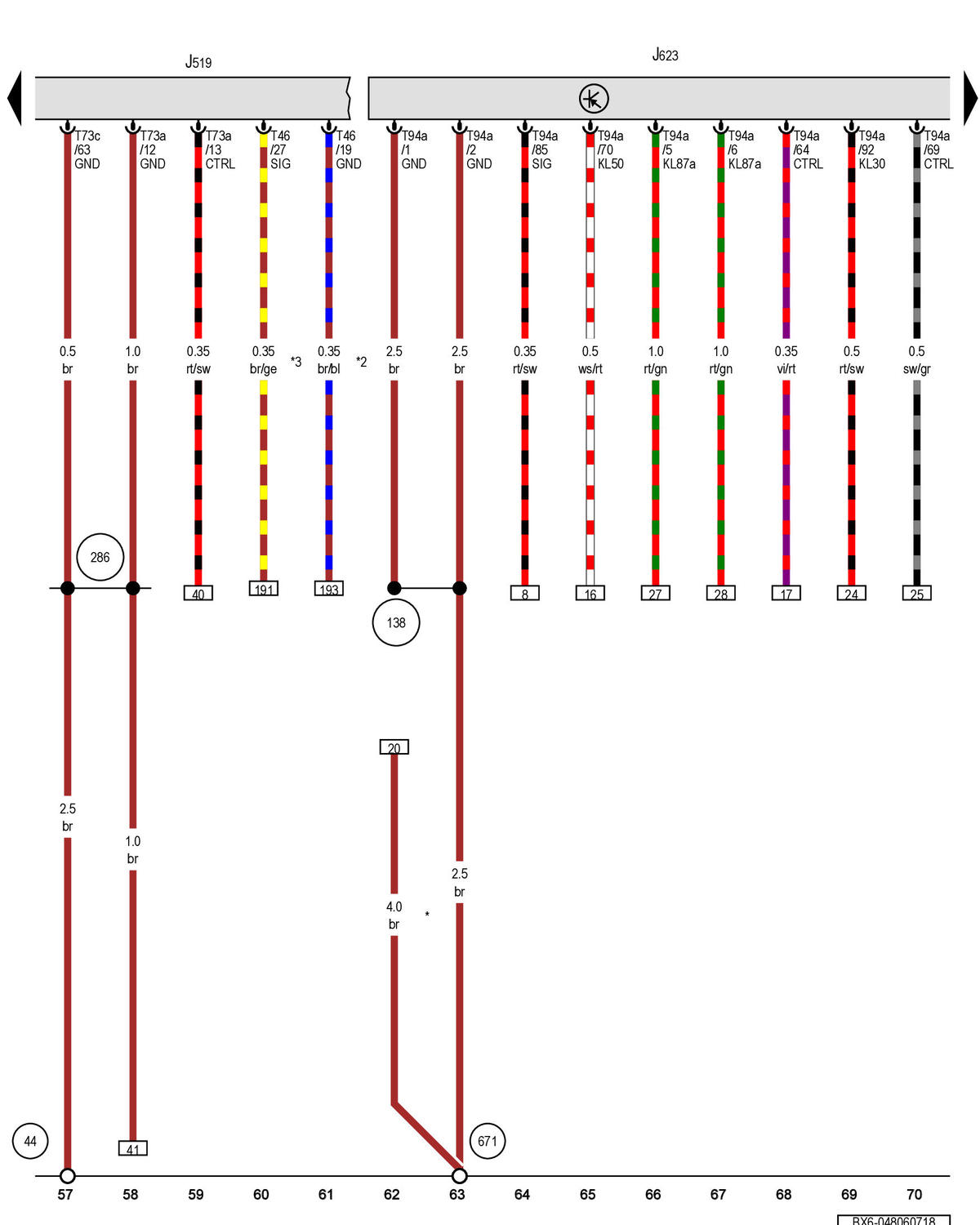

Vehicle Electrical System Control Module, Engine/Motor Control Module: Notes

GWWBX6-048060718

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
