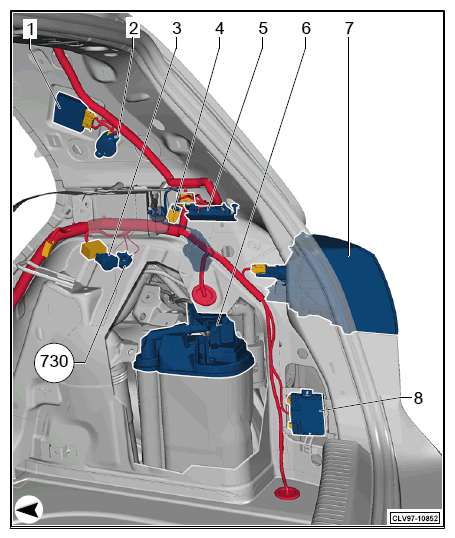

Trunk, Right

  1. Auxiliary engine coolant heater radio frequency receiver -R149-
  2. Rear parking aid warning buzzer -H15-
  3. Power socket 12 V -U5-
  4. Fuel filler door central locking actuator -F219-
  5. Luggage compartment lamp -W3-
  6. Fuel tank pressure sensor -G400-
  7. Right tail lamp -MX4-
  8. Mobile communication 2-way signal amplifier -J984-
G12709809Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
