Auto. Trans, 09G

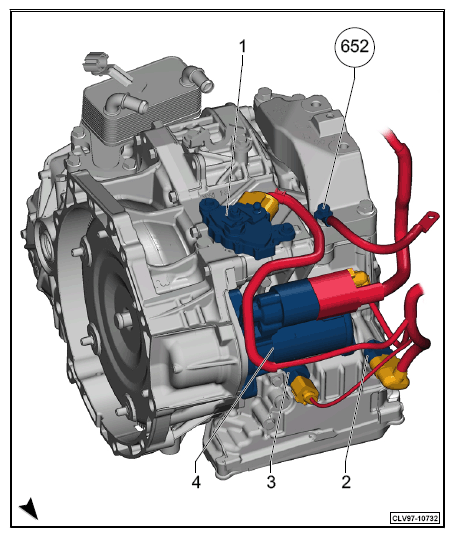

  1. Multifunction transmission range switch -F125-
  2. 14-pin connector -T14-
  3. 8-pin connector -T8I-
  4. Starter -B-
G12709781Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
