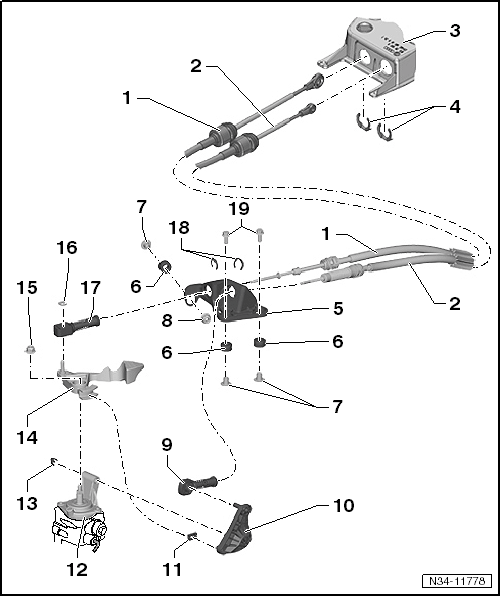

Overview - Operating Cables
NOTE:
Lubricate the bearing areas and the sliding surfaces.
Grease allocation. Refer to the Parts Information.
- Gearshift Cable
- Attach to the cable retainer
- Installation position. Refer to SELECTOR MECHANISM INSTALLATION POSITION
- Selector Cable
- Attach to the cable retainer
- Installation position. Refer to SELECTOR MECHANISM INSTALLATION POSITION
- Selector Housing
- Lock Washer
- Replace after removing
- Be careful not to damage the cables when removing them
- Cable Mounting Bracket
- Adjust after installing the selector mechanism. Refer to SELECTOR MECHANISM, ADJUSTING .
- Grommet
- Cable mounting bracket to transmission
- Spacer
- Nut
- 20 Nm
- For the cable bracket
- Cable Retainer
- For attaching the selector cable to the selector relay lever
- Adjust the gearshift mechanism after installing. Refer to SELECTOR MECHANISM, ADJUSTING .
- Do not interchange, cable locking mechanisms for selector cable on selector relay lever and for shift cable on transmission shift lever are different
- Allocation. Refer to Figure.
- Remove from the selector relay lever. Refer to Figure
- Press onto selector relay lever. Refer to Figure
- Selector Relay Lever
- Allocation. Refer to the Parts Information.
- Installation position. Refer to Figure
- Adjust the gearshift mechanism after installing. Refer to SELECTOR MECHANISM, ADJUSTING .
- Remove and install selector relay lever and cable retainer. Refer to Figure
- Sliding Shoe
- Gearshift Shaft with Gearshift Cover
- (Shift unit)
- Selector shaft seal, removing and installing. Refer to SELECTOR SHAFT SEAL, REPLACING .
- Clip
- For the selector relay lever
- Gearshift Lever
- Installing. Refer to Figure.
- Installation position. Refer to Figure
- Adjust the gearshift mechanism after installing. Refer to SELECTOR MECHANISM, ADJUSTING .
- Nut
- 25 Nm
- Replace after removing
- Self-locking
- Lock Washer
- Replace after removing
- Removing. Refer to Figure.
- Cable Retainer
- For attaching the shift cable to the transmission shift lever
- Adjust the gearshift mechanism after installing. Refer to SELECTOR MECHANISM, ADJUSTING .
- Do not interchange, cable locking mechanisms for selector cable on selector relay lever and for shift cable on transmission shift lever are different. Refer to Figure
- Lock Washer
- Replace after removing
- Be careful not to damage the cables when removing them
- Bolt
- 20 Nm
- For the cable bracket
- Quantity: 2
