Transmission Identification

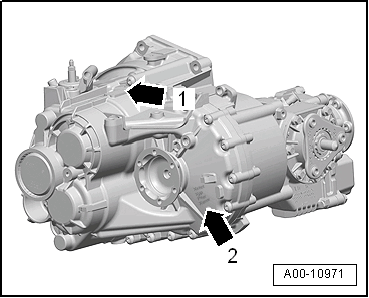

Code Letters and Build Date -arrow 1- Manual Transmission 0FB, AWD -arrow 2-

Fig 1: Locating Code Letters and Build Date -Arrow 1- Manual Transmission 02Q, AWD -Arrow 2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

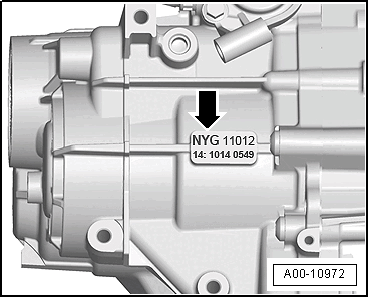

Manual Transmission 0FB AWD -arrow 2-

Fig 2: Identifying Transmission Identification - Manual Transmission 02Q

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Engine Code and Build Date -arrow-

Fig 3: Locating Engine Code and Build Date

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NYG	11	01	2
I	I	I	I
I	I	I	I
Codes	Day	Month	Year (2012) of manufacture

For additional data and information contact the factory.

NOTE:

The transmission code is also listed in the vehicle data plates.
