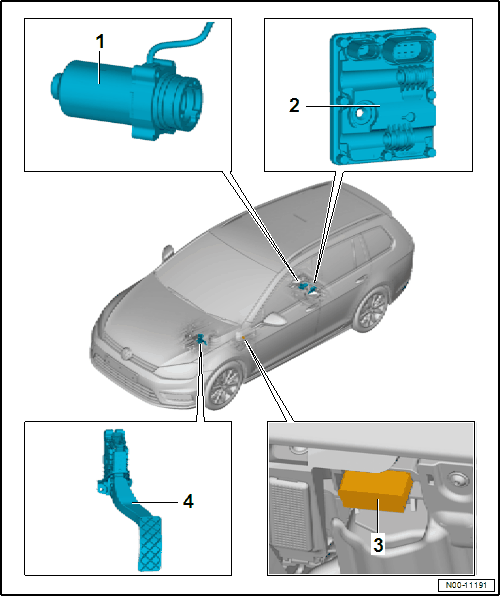

Overview - Electrical Components
NOTE:
Rear final drive "0CQ" with generation V all wheel drive clutch
- All Wheel Drive Clutch Pump -V181-
- Can be checked in "Guided Fault Finding" . Refer to Vehicle Diagnostic Tester.
- Removing and Installing. Refer to All Wheel Drive Clutch Pump -V181-, REMOVING AND INSTALLING .
- All Wheel Drive Control Module -J492-
- Important signals are transmitted from the engine control module and ABS Control Module - J104- via the Data bus to the All Wheel Drive Control Module -J492-.
- Removing and Installing. Refer to CONTROL MODULE, REMOVING AND INSTALLING .
- Diagnostic Connection -U31-
- Component location: inside the left front footwell
- Accelerator Pedal Position Sensor -G79- and Accelerator Pedal Position Sensor 2 -G185-
- Removing and installing. Refer to OVERVIEW - ACCELERATOR PEDAL MODULE .
