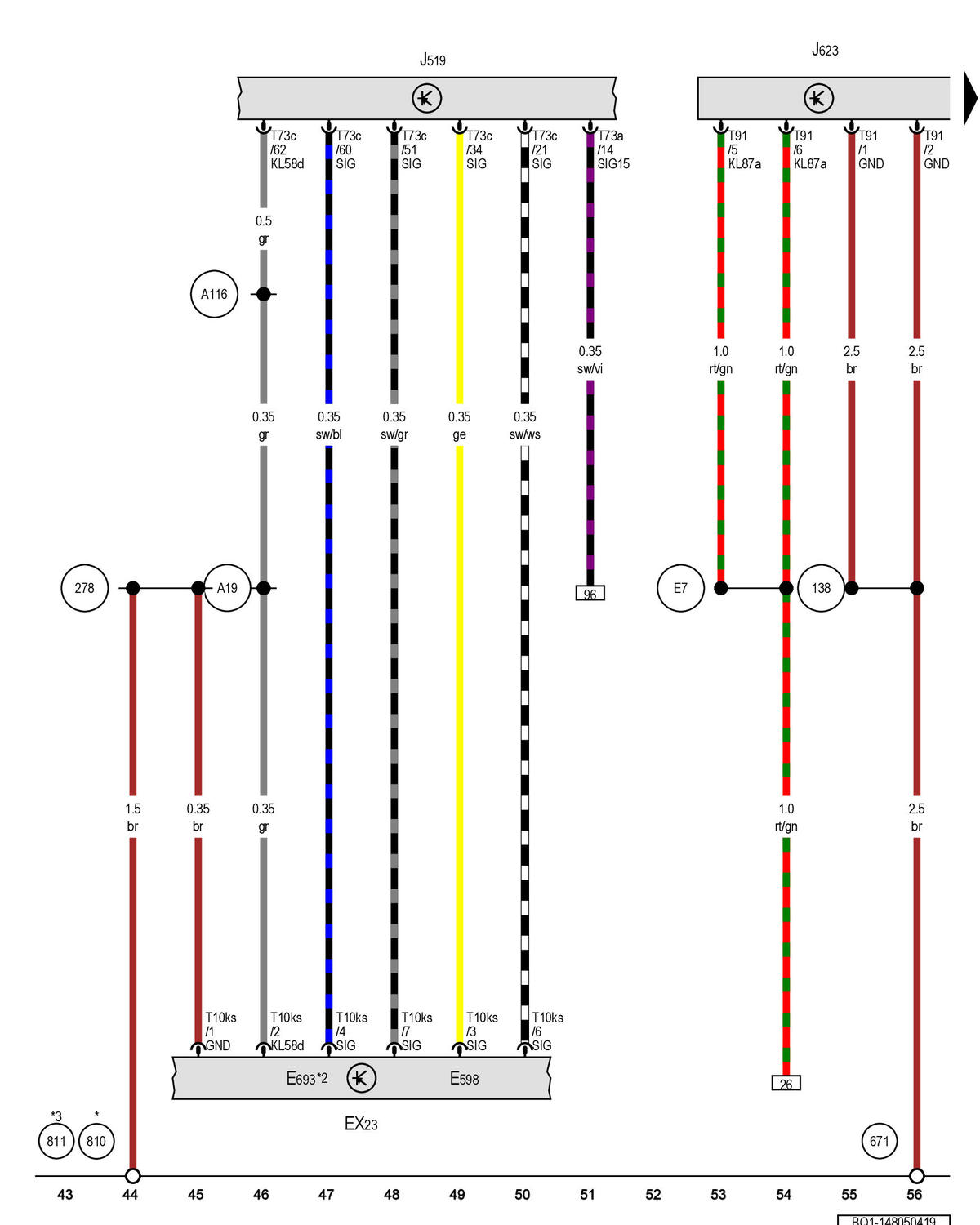

Center Console Switch Module 1, Vehicle Electrical System Control Module, Engine/Motor Control Module: Notes

GWWBQ1-148050419Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
