Led Headlamp With Adaptive Front Lighting System, Adjusting
Adjusting the headlamps is invoiced separately.
A vehicle with LED headlamps and Adaptive Front Lighting system can be identified with the PR number 8IU and 8IX.
Headlamp Range Control, Performing Basic Setting
-- Headlamp range control, performing basic setting using the Vehicle Diagnostic Tester.
Left Headlamp, Adjusting

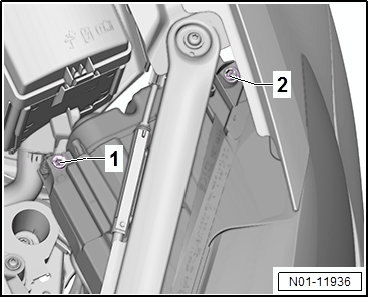

- Height Adjustment
- Lateral adjustment
-- Turn the height adjustment adjusting screw -1- until the correct setting is achieved.
-- Turn the lateral adjustment adjusting screw -2- until the correct setting is achieved. The side adjustment is sealed for SAE headlamps.
Left Headlamp, Re-Checking
Re-checking the headlamp is performed using the low beam test diagram.
The headlamp cannot be adjusted laterally butting the check. Adjusting the height is permissible.
-- Check the headlamp adjustment.
-- If necessary adjust the headlamp height adjustment.
Adjusting the right headlamp is identical and in the same sequence.
Adjustment screws for right headlamp are arranged symmetrically.
