Overview - Assembly Mount

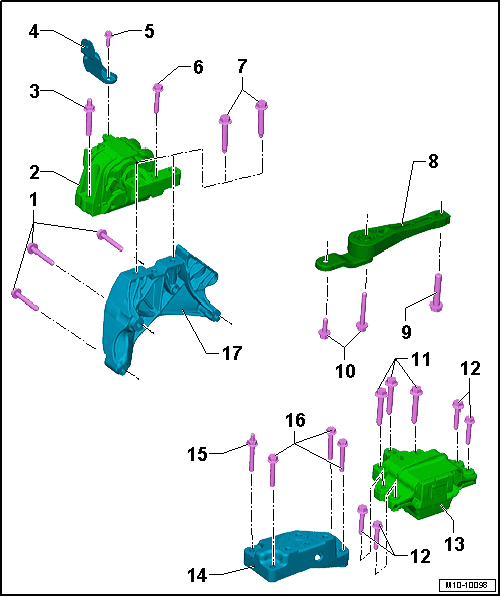

Fig 1: Assembly Mounts Exploded View

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Bolt
   • Tightening specification. Refer to Fig 2
   • Replace after removing  .
   • Engine support to engine
2. Engine Mount
   • Removing  and Installing  . Refer to ENGINE MOUNT, REMOVING AND INSTALLING .
3. Bolt
   • 40 Nm + 90°
   • Replace after removing  .
   • Engine mount to body
4. Bracket
5. Bolt
   • 20 Nm + 90°
   • Replace after removing  .
   • Bracket to engine mount and body
6. Bolt
   • 40 Nm + 90°
   • Replace after removing  .
   • Engine mount to body
7. Bolts
   • 60 Nm +90°
   • Replace after removing  .
   • Engine mount to engine support
8. Pendulum Support
   • Removing  and Installing  . Refer to Fig 3.
   • First install the pendulum support to the transmission and then to the subframe
9. Bolt
   • Tightening specification. Refer to Fig 3
   • Replace after removing  .
   • Pendulum support to subframe
10. Bolts
    • Tightening specification. Refer to Fig 3
    • Replace after removing  .
    • Pendulum support to transmission
11. Bolt
    • 60 Nm +90°
    • Replace after removing  .
    • Transmission mount to transmission support
12. Bolt
    • 40 Nm + 90°
    • Replace after removing  .
    • Transmission mount to body
13. Transmission Mount
    • The illustration shows the DSG^® transmission version
14. Transmission Support
15. Bolt

    Tightening specification:

    • Vehicles with a manual transmission. Refer to TRANSMISSION, REMOVING AND INSTALLING .
    • Vehicles with a DSG^® transmission. Refer to TRANSMISSION, REMOVING AND INSTALLING .
    • Double Bolt
    • Transmission support to transmission
16. Bolt

    Tightening specification:

    • Vehicles with a manual transmission. Refer to TRANSMISSION, REMOVING AND INSTALLING .
    • Vehicles with a DSG^® transmission. Refer to TRANSMISSION, REMOVING AND INSTALLING .
    • Transmission support to transmission
17. Engine Support
    • Removing  and Installing  . Refer to ENGINE SUPPORT, REMOVING AND INSTALLING .

Engine Support - Tightening Specification and Sequence

Fig 2: Engine Support - Tightening Specification and Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolts in steps in the sequence -1 to 3- :

Installing  the Pendulum Support

Fig 3: Assembly Mounts Tightening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- First fasten the pendulum support -4- to the transmission and then to the subframe.

-- Tighten the bolts in the steps shown in the sequence:
