CLIMATRONIC, Part II

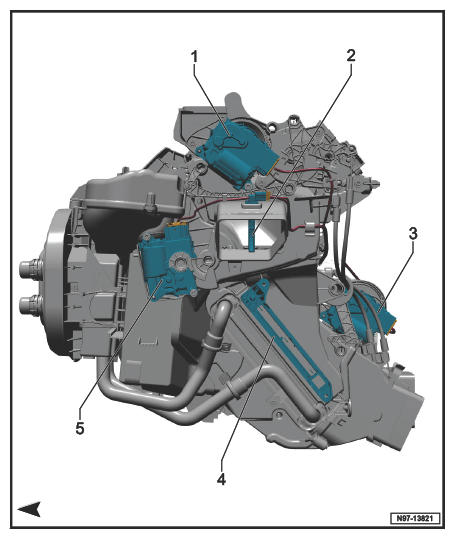

1. Air Distribution Door -VX33-
   • Front Air Distribution Door Motor Position Sensor -G642-
   • Front Air Distribution Door Motor -V426-
   • For Vehicles With Climatic KH9, Refer To → Item  1
2. Footwell Vent Temperature Sensor -G192-
3. Not Used
4. Not Used
5. Left Front Control Temperature Door -VX34-
   • Left Temperature Control Door Motor Position Sensor -G220-
   • Left Temperature Control Door Motor -V158-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
