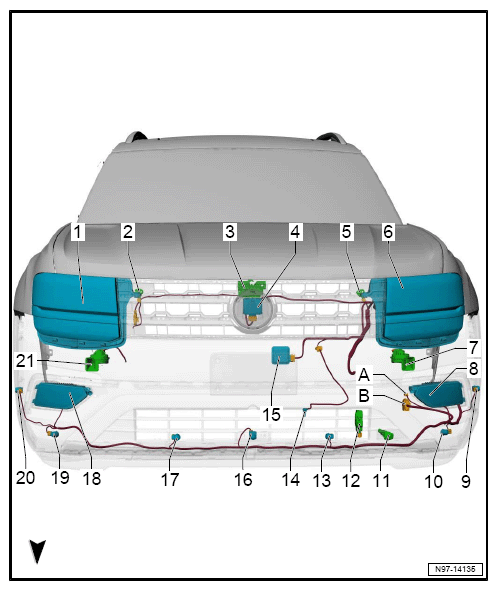

Vehicle Front

1. A  - 5-Pin Connector -T5A-, Blue/5-Pin Connector -T5AD-, Blue
2. B  - 14-Pin Connector -T14A-, Black/14-Pin Connector -T14R-, Black
3. 1  - Right Front Headlamp -MX2-
   • Right Headlamp Beam Adjustment Motor -V49-
   • Right Headlamp Power Output Module -J668-
4. 2  - Passenger Side Front Airbag Crash Sensor -G284-
5. 3  - Hood Contact Switch -F387-
6. 4  - Distance Regulation Control Module -J428-
7. 5  - Driver Front Airbag Crash Sensor -G283-
8. 6  - Left Front Headlamp -MX1-
   • Left Headlamp Beam Adjustment Motor -V48-
   • Left Headlamp Power Output Module -J667-
9. 7  - Left Horn -H33-
10. 8  - Left Front Fog Lamp Bulb -L22-
11. 9  - Left Front Parallel Parking Assistance Sensor -G568-
12. 10  - Left Front Parking Aid Sensor -G255-
13. 11  - Exterior Socket, 230 V, 110 V -U8-
14. 12  - Radiator Shutter Motor -V544-
15. 13  - Left Front Center Parking Aid Sensor -G254-
16. 14  - Outside Air Temperature Sensor -G17-
17. 15  - Garage Door Opener Control Module -J530-
18. 16  - Front Peripheral Camera -R243-
19. 17  - Right Front Center Parking Aid Sensor -G253-
20. 18  - Right Front Fog Lamp Bulb -L23-
21. 19  - Right Front Parking Aid Sensor -G252-
22. 20  - Right Front Parallel Parking Assistance Sensor -G569-
23. 21  - Right Horn -H34-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
