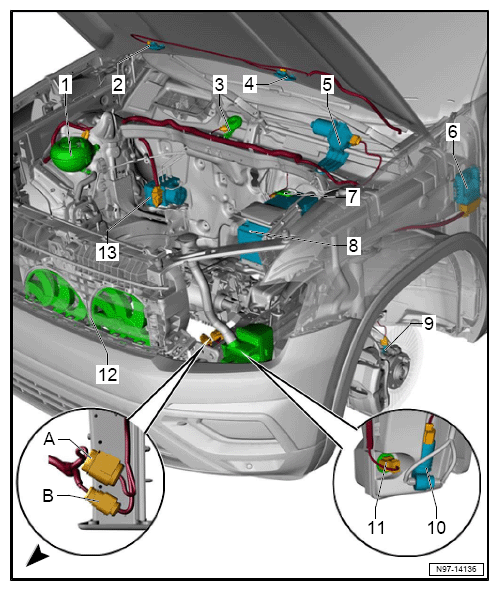

Vehicle Front, Left View

1. A  - 14-Pin Connector -T14O-, Gray/14-Pin Connector -T14T-, Gray
2. B  - 4-Pin Connector -T4BR-, Black/4-Pin Connector -T4CJ-, Black
3. 1  - Engine Coolant Level Sensor -G32-
4. 2  - Right Washer Nozzle Heater -Z21-
5. 3  - Anti-Theft Alarm System Horn -H8-
6. 4  - Left Washer Nozzle Heater -Z20-
7. 5  - Windshield Wiper Motor -V-
   • Wiper Motor Control Module -J400-
   • Driver Windshield Wiper Motor -V216-
8. 6  - Transmission Control Module -J217-
9. 7  - Battery Monitoring Control Module -J367-
10. 8  - Battery -A-
11. 9  - Left Front ABS Wheel Speed Sensor -G47-
12. 10  - Windshield And Rear Window Washer Pump -V59-
13. 11  - Windshield Washer Fluid Level Sensor -G33-
14. 12  - Radiator Fan -VX57-
    • Radiator Fan Control Module -J293-
    • Radiator Fan 2 -V177-
15. 13  - ABS Control Module -J104-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
