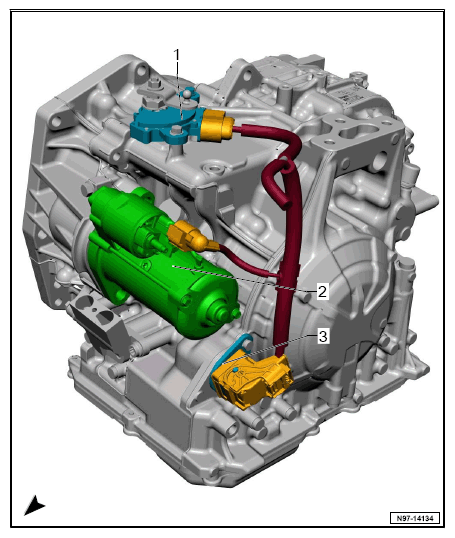

Transmission 09P

  1. Multifunction Transmission Range Switch -F125-
  2. Starter -B-
  3. Transmission -NX1-
G12711237Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
