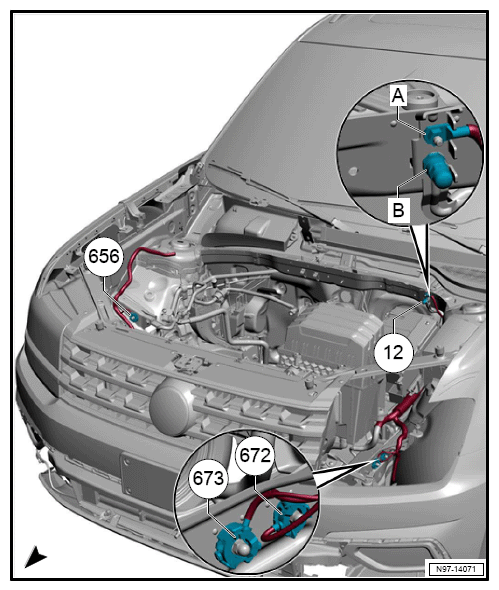

Left Front

  1. 12  - Ground Connection In Engine Compartment, Left
    • A - Tightening Specification 9 Nm
    • B - Tightening Specification 20 Nm
  2. 656  - Ground Connection On Right Headlamp
    • Tightening Specification 9 Nm
  3. 672  - Ground Connection 2 On Left Front Longitudinal Member
    • Tightening Specification 9 Nm
  4. 673  - Ground Connection 3 On Left Front Longitudinal Member
    • Tightening Specification 9 Nm
G12757732Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
