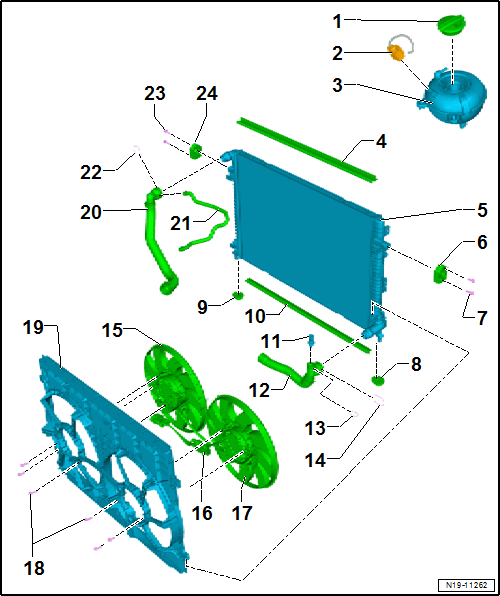

Overview - Radiator/Radiator Fan
WARNING: This page is about a different variant/trim than selected.
- Cap
- Checking using the Vehicle Diagnostic Tester. Refer to COOLING SYSTEM, CHECKING FOR LEAKS .
- Connector
- Expansion Tank
- Perform a leak test for the coolant system using the Cooling System Tester: VAG1274B and Cooling System Tester - Adapter: VAG1274/8 . Refer to COOLING SYSTEM, CHECKING FOR LEAKS .
- Upper Seal
- Radiator
- Removing and installing. Refer to RADIATOR, REMOVING AND INSTALLING .
- Secured on the charge air cooler
- Bearing
- For the charge air cooler
- Bolt
- 5 Nm
- Right Mount
- For the charge air cooler
- Left Mount
- For the charge air cooler
- Lower Seal
- Engine Coolant Temperature Sensor on Radiator Outlet -G83-
- Removing and installing. Refer to Engine Coolant Temperature Sensor on Radiator Outlet -G83-, REMOVING AND INSTALLING .
- Lower Coolant Hose
- From connection for coolant regulator
- Clip
- Check for secure fit
- Clip
- Check for secure fit
- Radiator Fan -VX57-
- Removing and installing
- With Radiator Fan -V7- and Radiator Fan Control Module -J293-
- Connector
- Radiator Fan 2 -V177-
- Removing and installing. Refer to FAN SHROUD, REMOVING AND INSTALLING .
- Bolt
- 5 Nm
- Fan Shroud
- Removing and installing. Refer to FAN SHROUD, REMOVING AND INSTALLING .
- Coolant Hose
- From the rear coolant pipe
- Coolant Hose
- For venting
- Clip
- Check for secure fit
- Bolt
- 5 Nm
- Bearing
- For the charge air cooler
