Fuel Level Sensor -G-, Removal And Installation

Removal

-- Disengage and free up the wires on the fuel delivery unit.

-- Slide the locking mechanism for the vacuum line downward.

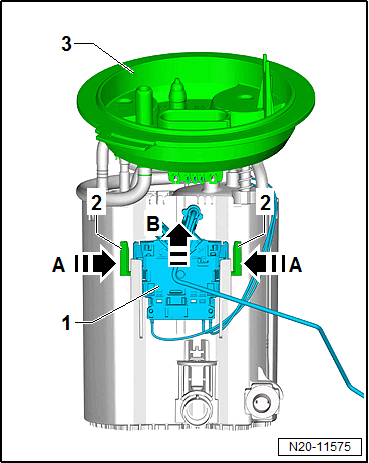

-- Release the tabs -2- in direction of -arrows A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Fuel Level Sensor -G- -1- upward in direction of -arrow B-.

-- Write down the cable color coding for reinstallation.

Fig 1: Fuel Level Sensor Electrical Connectors

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect and remove the connectors -1 through 3-.

-- Bend the hooks back.

Installation:

Fig 2: Fuel Level Sensor Electrical Connectors

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Connect the connectors -1 through 3-.

-- Check the color coding.

-- Pull on the connectors to make sure they are secure.

-- Insert the Fuel Level Sensor -G- into the guide on the fuel delivery unit and push downward until it engages.
