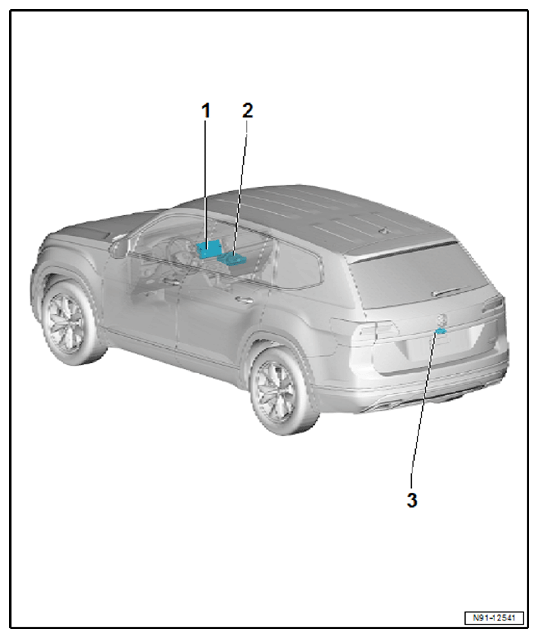

7.2 Component Location Overview - Rearview Camera System

1. Front Information Display Control Head - J685-
   • Inside the center of the instrument panel
   • Composition Color: in connection with the Information Electronics Control Module 1 -J794-
   • Composition Media, Discover Media: individual display
   • Removing and installing Composition Color. Refer to 4.2.1 Radio (Removing and Installing, Composition Color).
   • Removing and installing Composition Media, Discover Media. Refer to 1.3 Infotainment System Display (Removing and Installing).
2. Information Electronics Control Module 1 - J794-
   • Only on Composition Media, Discover Media in glove compartment
   • For Composition Color in connection with the Front Information Display Control Head -J685- in the center instrument panel
   • Removing and installing Composition Color. Refer to 4.2.1 Radio (Removing and Installing, Composition Color).
   • Removing and installing Composition Media, Discover Media. Refer to 1.4 Information Electronics Control Module 1 J794 (Removing and Installing).
3. Rearview Camera - R189-
   • With integrated Rearview Camera System Control Module - J772-
   • Integrated in the rear lid handle button
   • Removing and Installing. Refer to
   • Rearview Camera System, Calibrating. Refer to
