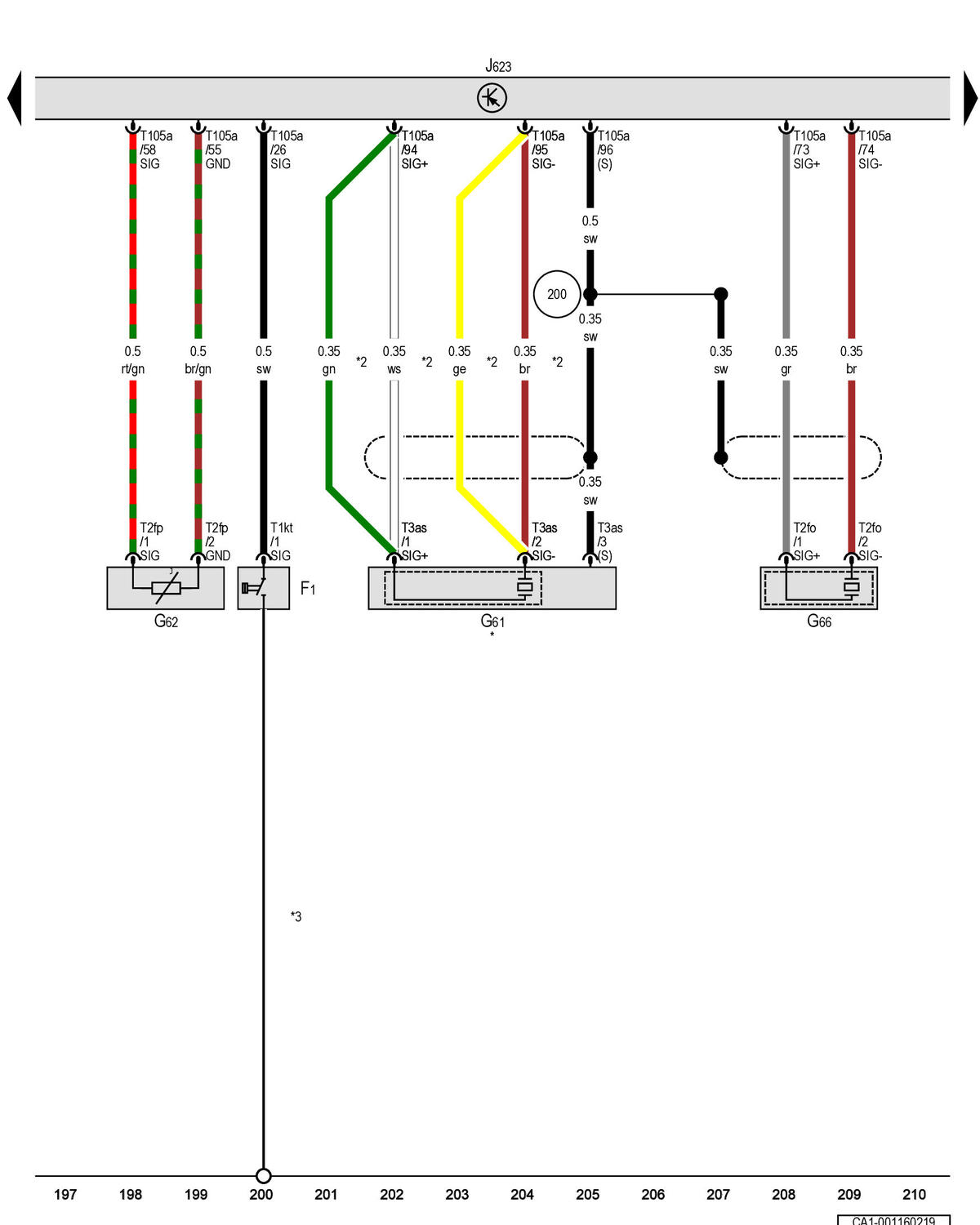

Oil Pressure Switch, Knock Sensor 1, Engine Coolant Temperature Sensor, Knock Sensor 2, Engine/Motor Control Module: Notes

GWWCA1-001160219Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
