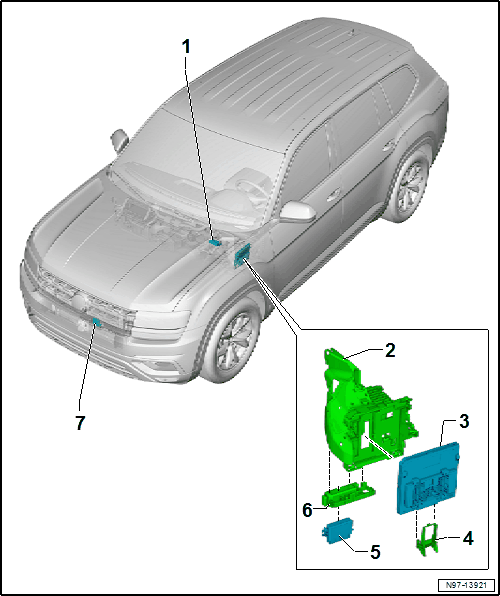

Component Location Overview - Control Modules
- Data Bus on Board Diagnostic Interface -J533-
- Removing and installing. Refer to Data Bus on Board Diagnostic Interface -J533-, REMOVING AND INSTALLING .
- Bracket
- For Vehicle Electrical System Control Module -J519-
- Removing and installing. Refer to Vehicle Electrical System Control Module -J519- BRACKET, REMOVING AND INSTALLING .
- Vehicle Electrical System Control Module -J519-
- Removing and installing. Refer to Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
- Guide
- For the center connector
- Parking Aid Control Module -J446- /Parallel Parking Assistance Control Module -J791-
- Parking Aid Control Module -J446- overview. Refer to OVERVIEW - PARKING AID .
- Parallel Parking Assistance Control Module -J791- overview. Refer to OVERVIEW - PARALLEL PARKING ASSIST .
- Bracket
- For Parking Aid Control Module -J446- /Parallel Parking Assistance Control Module -J791-
- Removing and installing. Refer to Parking Aid Control Module -J446- /Parallel Parking Assistance Control Module -J791- BRACKET, REMOVING AND INSTALLING .
- Garage Door Opener Control Module -J530-
- Removing and installing. Refer to GARAGE DOOR OPENER CONTROL MODULE, REMOVING AND INSTALLING .
