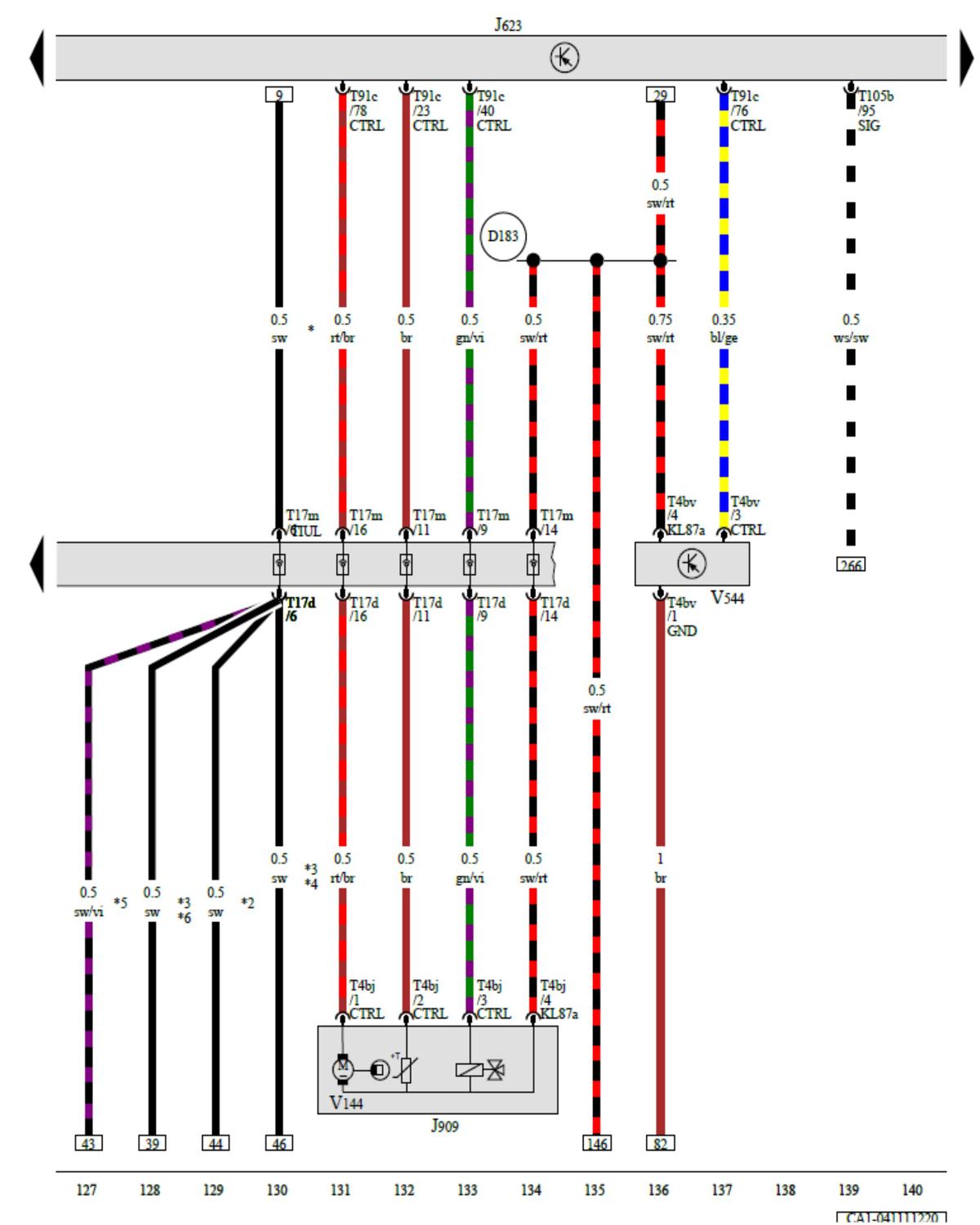

Engine/Motor Control Module, Fuel Tank Leak Detection Control Module, Radiator Shutter Motor: Notes

GWWCA1-041101217Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
