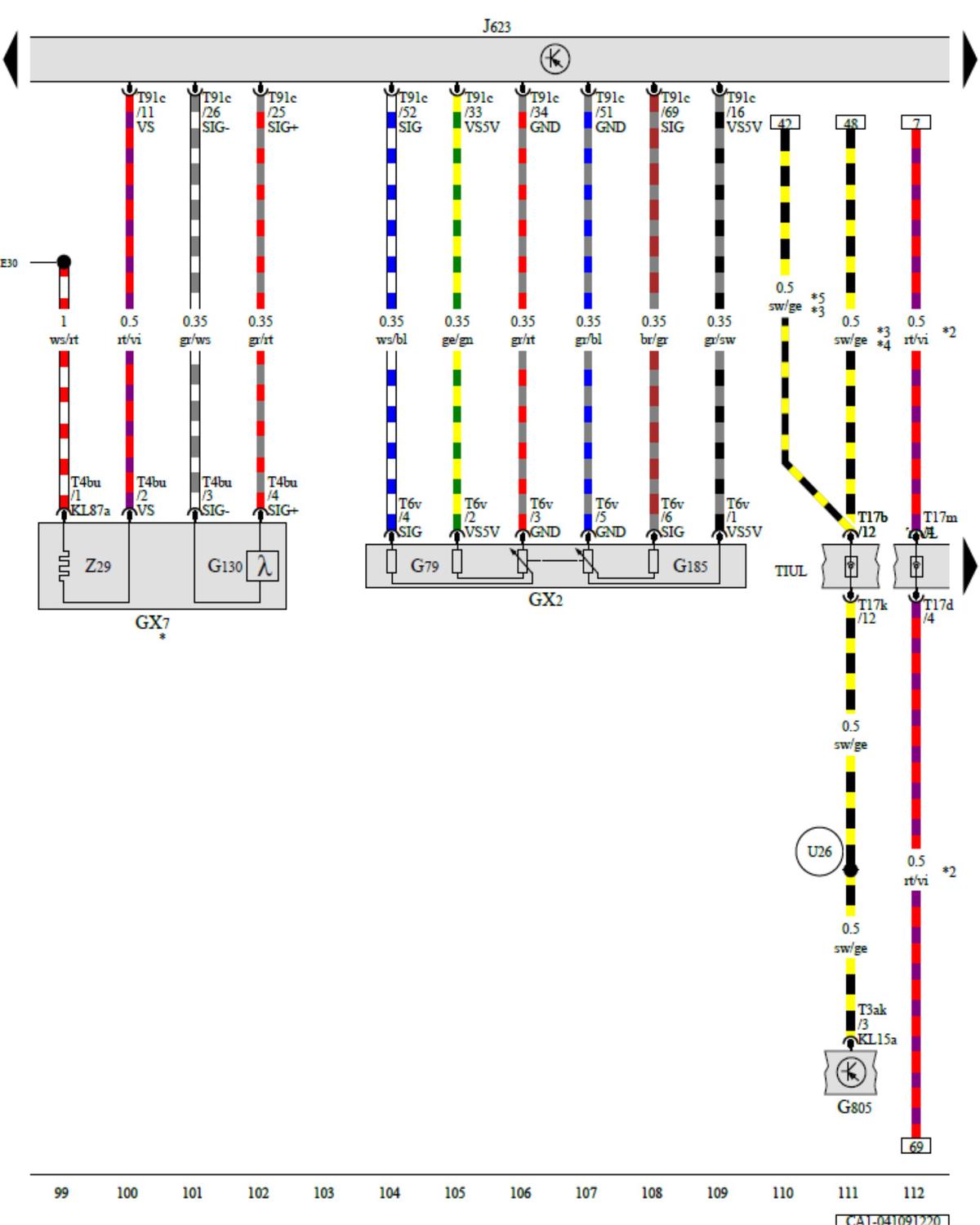

Accelerator Pedal Module, Oxygen Sensor 1 After Catalytic Converter, Refrigerant Circuit Pressure Sensor, Engine/Motor Control Module: Notes

GWWCA1-041091217Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
