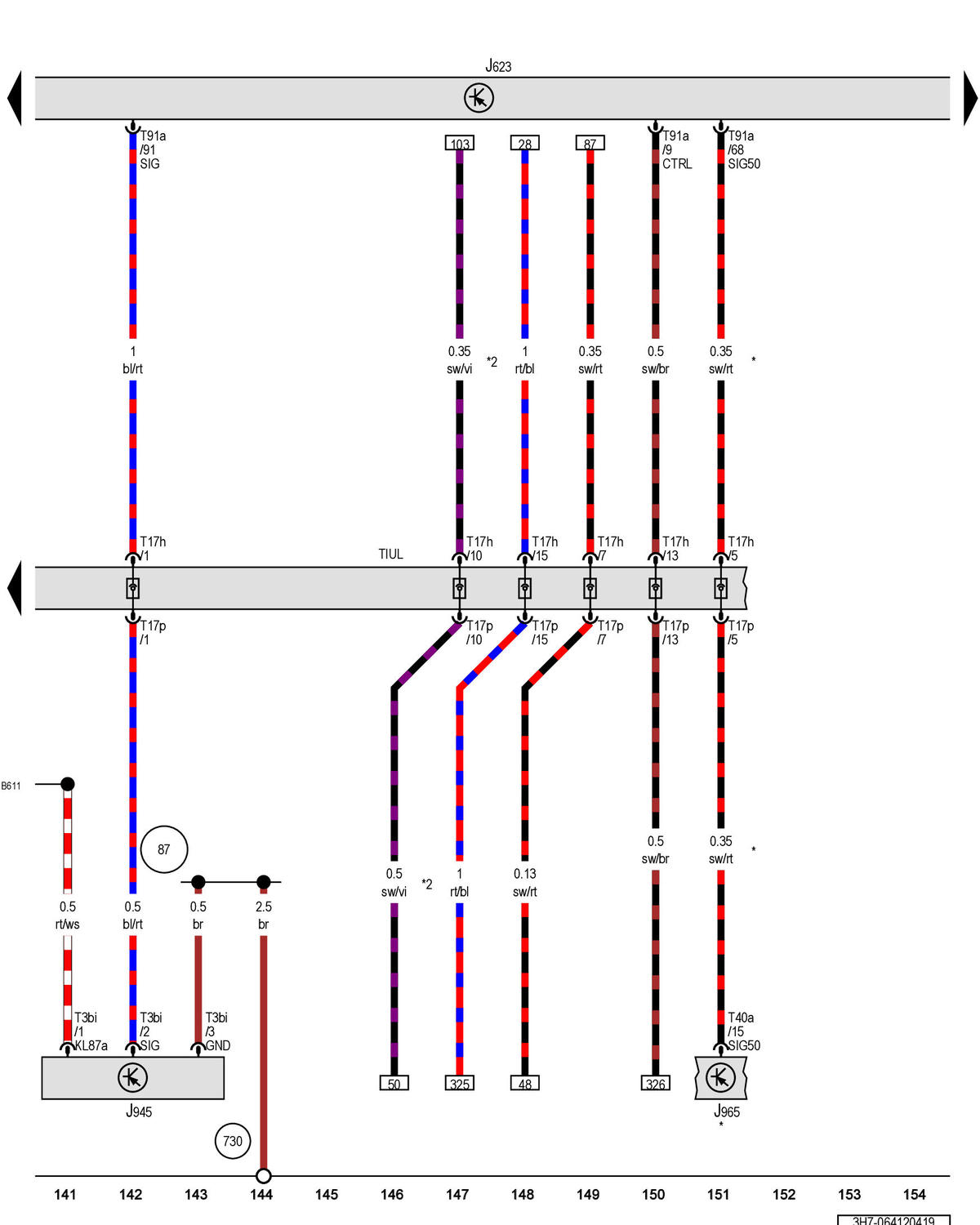

Engine/Motor Control Module, Exhaust Door Control Unit 2, Access/Start System Interface: Notes

GWW3H7-064120419Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
