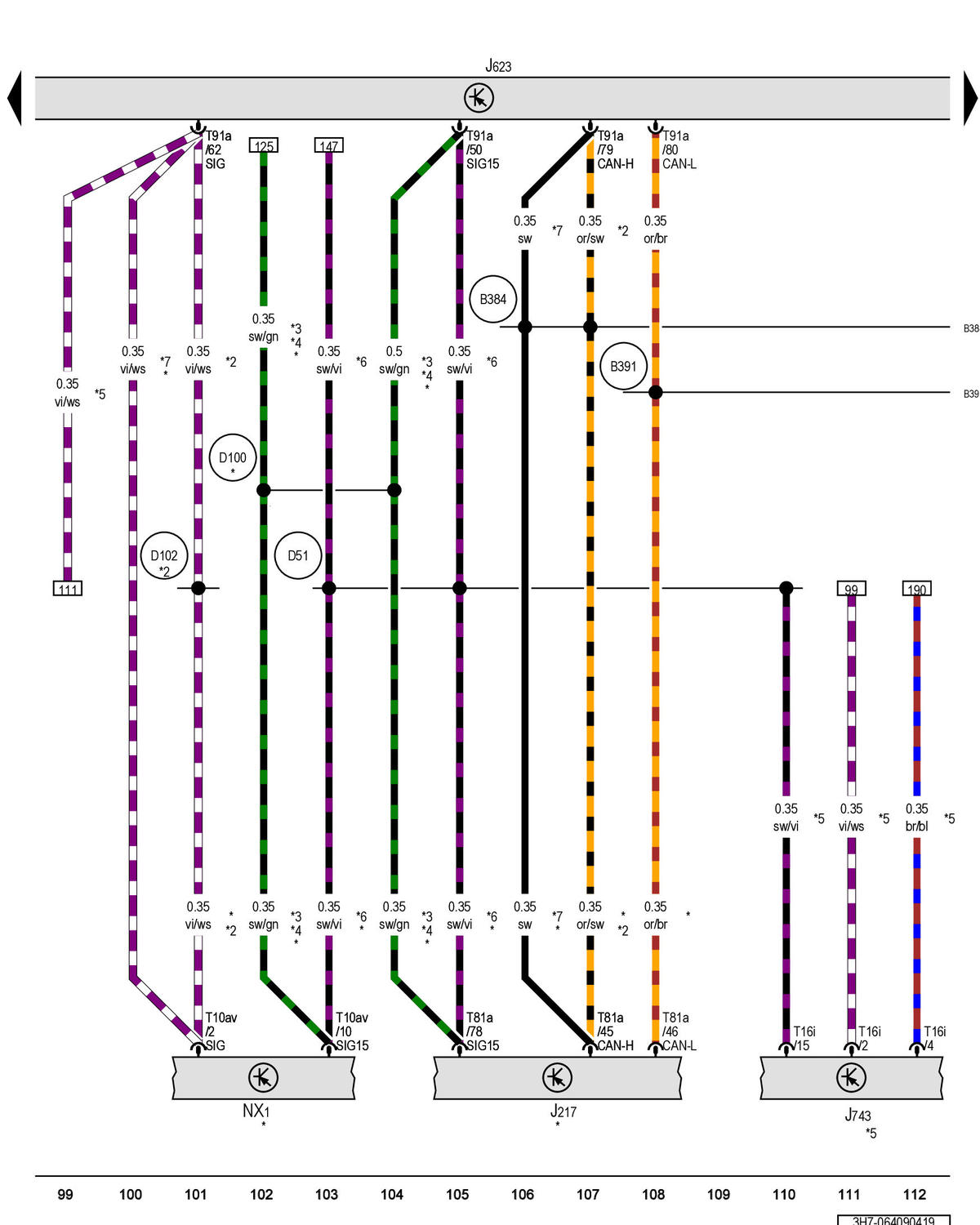

Transmission Control Module, Engine/Motor Control Module, Dual-Clutch Transmission MECHATRONIC, Transmission: Notes

GWW3H7-064090419Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
