Removal And Installation

WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the subwoofer. For additional information, refer to Information and Entertainment Systems - Sony Audio System .

2.

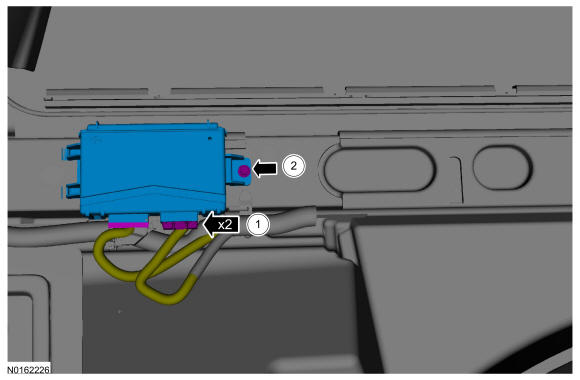

Remove the Liftgate/Trunk Module(LTM).
1. 1.

  Disconnect the electrical connectors.
1. 2.

  Remove the bolt and the LTM.
  - To install, tighten to 9 Nm (80 lb-in).

GFD137149

Courtesy of FORD MOTOR COMPANY

3.

To install, reverse the removal procedure.
- Initialize the power liftgate. For additional information, refer to Power Liftgate Initialization .
