Overview - Steering Column, RHD: Notes

WARNING: This page is about a different car, the 2017 Volkswagen Touareg, 2016 Volkswagen Touareg, and 2015 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Welding and straightening work on supporting or wheel carrying components of suspension is not permitted.

Always replace self-locking nuts.

Always replace corroded bolts/nuts.

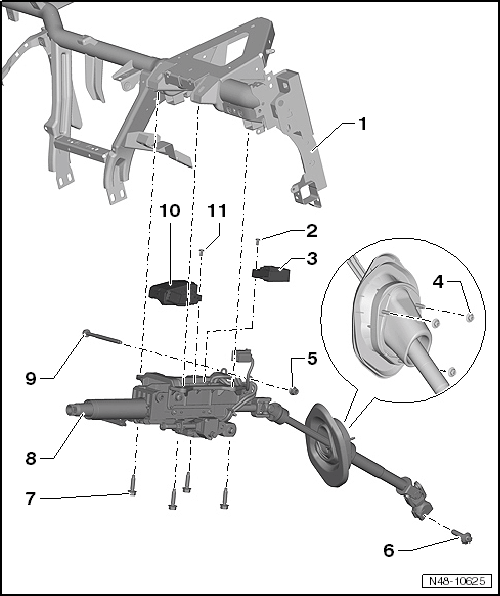

Fig 1: Exploded View Of Steering Column, RHD

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Crossmember
Bolt
- 5 Nm
Power Adjustable Steering Column Control Module -J866-
- For the allocation. Refer to the Parts Information.
- Removing and installing. Refer to Power Adjustable Steering Column Control Module -J866-, REMOVING AND INSTALLING .
Nut
- 4 Nm
Nut
- 20 Nm
- Always replace if removed
Bolt
- 20 Nm + 90°
- Always replace if removed
Bolt
- 20 Nm
- Quantity: 4
Steering Column
- There are different steering column versions. For the allocation. Refer to the Parts Information.
- Removing and installing. Refer to STEERING COLUMN, REMOVING AND INSTALLING, RHD .
- Check for damage. Refer to STEERING COLUMN, CHECKING FOR DAMAGE .
Bolt
Electronic Steering Column Lock Control Module -J764-
- Removing and installing. Refer to Electronic Steering Column Lock Control Module -J764-, REMOVING AND INSTALLING .
Bolt
- 5 Nm
