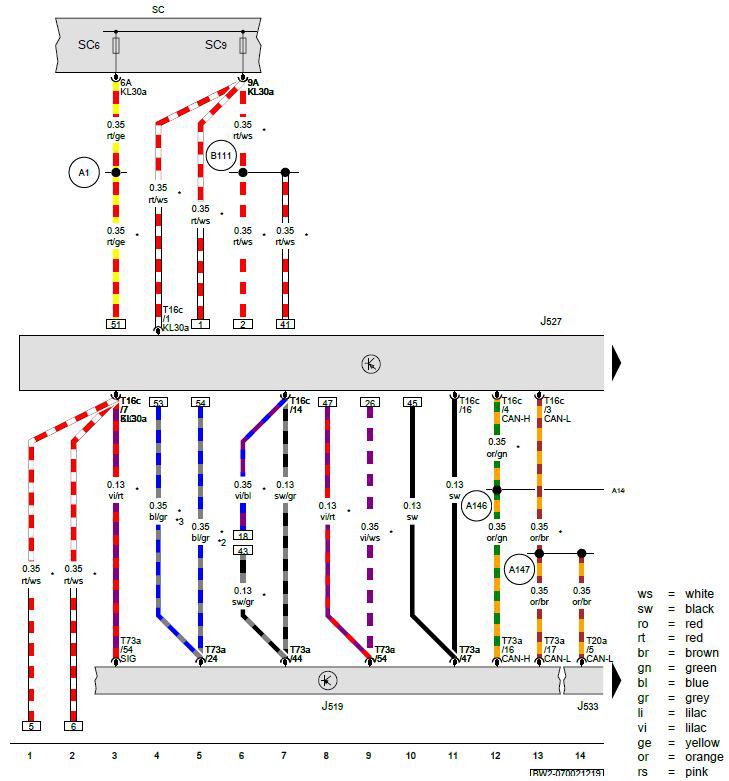

Vehicle Electrical System Control Module, Steering Column Electronics Control Module, Data Bus on Board Diagnostic Interface, Fuse Panel C
J519 - Vehicle Electrical System Control Module
J527 - Steering Column Electronics Control Module
J533 - Data Bus on Board Diagnostic Interface
SC - Fuse Panel C
SC6 - Fuse 6 (On Fuse Panel C)
SC9 - Fuse 9 (On Fuse Panel C)
T16c - 16-Pin Connector
T20a - 20-Pin Connector, Red
T73a - 73-Pin Connector, Black
T73c - 73-Pin Connector
A1 - Positive Connection 30a (in Instrument Panel Wiring Harness)
A146 - Comfort System CAN Bus High Connection (in Instrument Panel Wiring Harness)
A147 - Comfort System CAN Bus Low Connection (in Instrument Panel Wiring Harness)
B111 - Positive Connection 1 (30a) (in Interior Wiring Harness)
* - Depending on Equipment
*2 - Through January 2019
*3 - From January 2019
