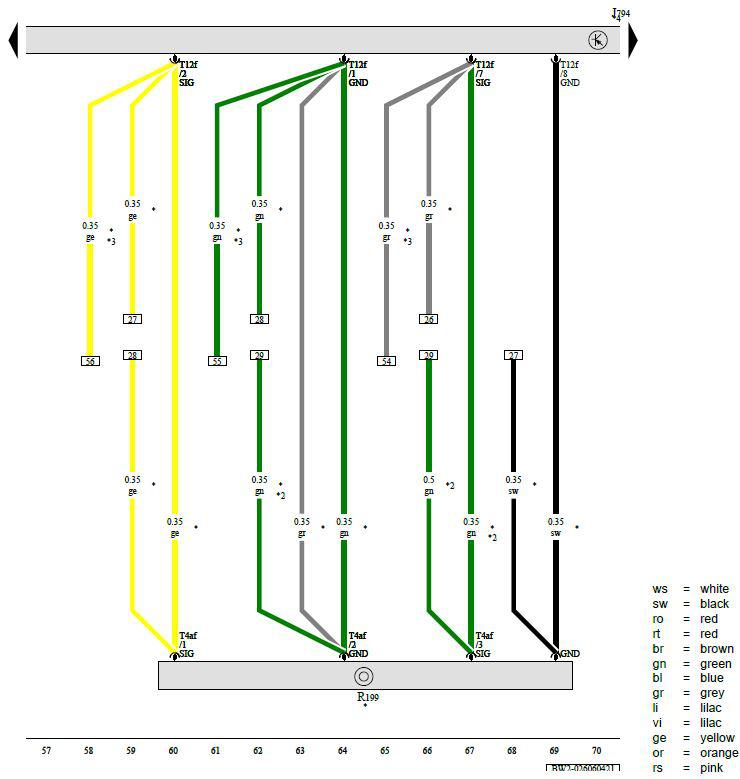

Information Electronics Control Module 1, External Audio Source Connection

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J794 -  Information Electronics Control Module 1

R199 -  External Audio Source Connection

T4af -  4-Pin Connector, Black

T12f -  12-Pin Connector, Green

* -  Depending on Equipment

*2 -  The Color of the Wires Depends on Vehicle Equipment

*3 -  From September 2018

*4 -  Different Connector Color Possible
