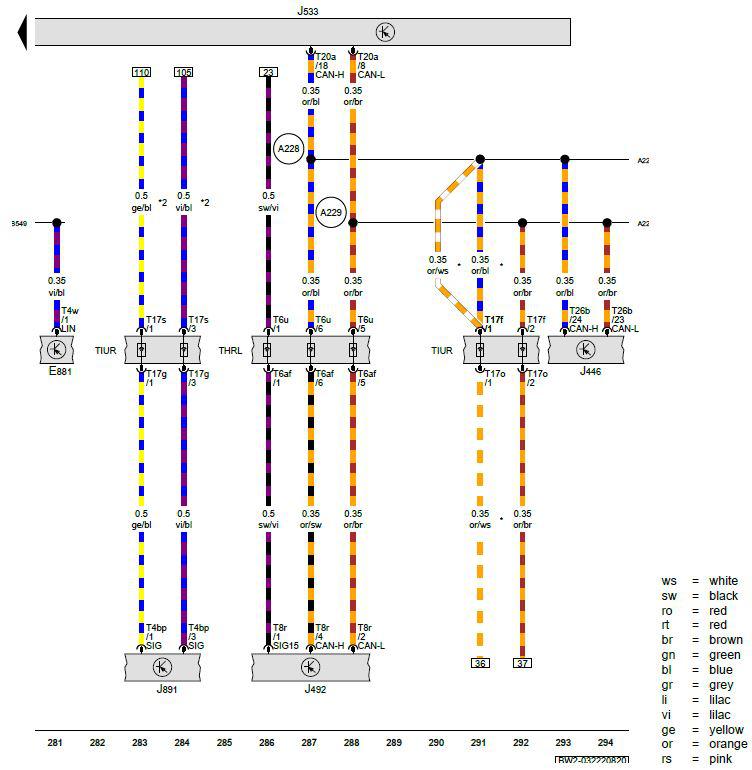

Driving Profile Selection Control Head, Parking Aid Control Module, All Wheel Drive Control Module, Data Bus on Board Diagnostic Interface, Reducing Agent Heater Control Module
E881 - Driving Profile Selection Control Head
J446 - Parking Aid Control Module
J492 - All Wheel Drive Control Module
J533 - Data Bus on Board Diagnostic Interface
J891 - Reducing Agent Heater Control Module
T4bp - 4-Pin Connector, Black
T4w - 4-Pin Connector, Black
T6af - 6-Pin Connector, Black
T6u - 6-Pin Connector, Black
T8r - 8-Pin Connector, Black
T17f - 17-Pin Connector, Black
T17g - 17-Pin Connector, Brown
T17o - 17-Pin Connector, Black
T17s - 17-Pin Connector, Brown
T20a - 20-Pin Connector, Red
T26b - 26-Pin Connector, Black
THRL - Coupling Point in Luggage Compartment, Left
TIUR - Coupling Point in Interior, Bottom Right
A228 - Suspension/Instrument Cluster CAN Bus High Connection 1 (in Instrument Panel Wiring Harness)
A229 - Suspension/Instrument Cluster CAN Bus Low Connection 1 (in Instrument Panel Wiring Harness)
B549 - LIN Bus Connection 2 (in Main Wiring Harness)
* - The Color of the Wires Depends on Vehicle Equipment
*2 - Refer to Applicable Engine Wiring Diagram
