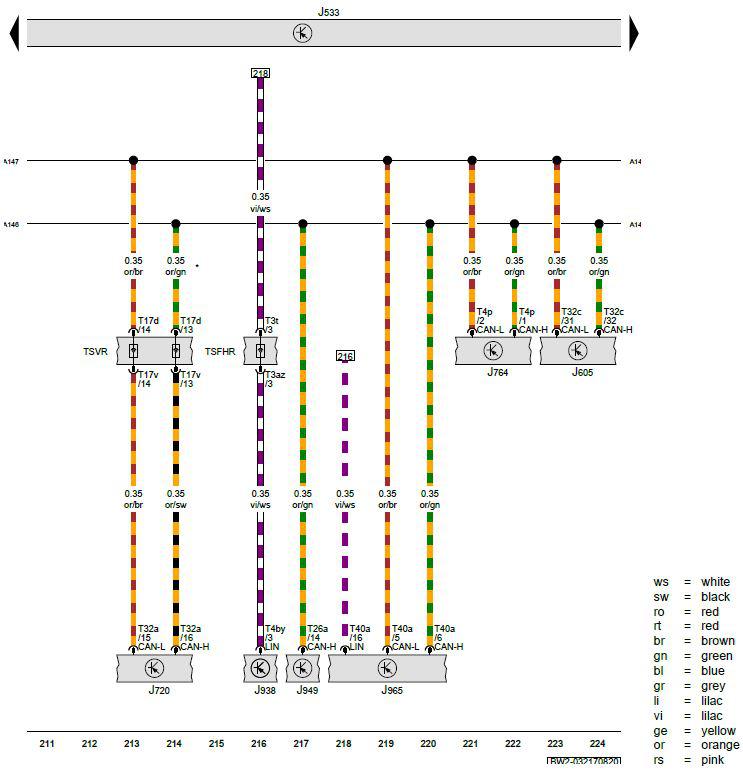

Data Bus on Board Diagnostic Interface, Rear Lid Control Module, Front Passenger Seat Adjustment Control Module, Electronic Steering Column Lock Control Module, Power Rear Lid Opening Control Module, Control Module for Emergency Call Module and Communication Unit, Access/ Start System Interface
J533 - Data Bus on Board Diagnostic Interface
J605 - Rear Lid Control Module
J720 - Front Passenger Seat Adjustment Control Module
J764 - Electronic Steering Column Lock Control Module
J938 - Power Rear Lid Opening Control Module
J949 - Control Module for Emergency Call Module and Communication Unit
J965 - Access/Start System Interface
T3az - 3-Pin Connector, Black
T3t - 3-Pin Connector, Black
T4by - 4-Pin Connector, Black
T4p - 4-Pin Connector, Black
T17d - 17-Pin Connector, Red
T17v - 17-Pin Connector, Red
T26a - 26-Pin Connector
T32a - 32-Pin Connector, Gray
T32c - 32-Pin Connector
T40a - 40-Pin Connector, Black
TSFHR - Coupling Point on Right Rear Bumper
TSVR - Right Front Seat Coupling Station
A146 - Comfort System CAN Bus High Connection (in Instrument Panel Wiring Harness)
A147 - Comfort System CAN Bus Low Connection (in Instrument Panel Wiring Harness)
* - The Color of the Wires Depends on Vehicle Equipment
