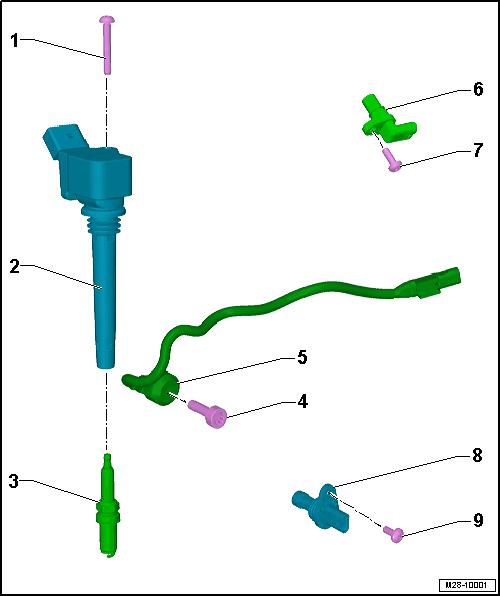

Overview - Ignition System
- Bolt
- 10 Nm
- Ignition Coil with Power Output Stage
- Ignition Coil 1 with Power Output Stage -N70-
- Ignition Coil 2 with Power Output Stage -N127-
- Ignition Coil 3 with Power Output Stage -N291-
- Ignition Coil 4 with Power Output Stage -N292-
- Ignition coils with power output stage and spark plug connectors can be obtained individually for repairs. Refer to IGNITION COILS WITH POWER OUTPUT STAGES, REMOVING AND INSTALLING .
- Removing and installing. Refer to IGNITION COILS WITH POWER OUTPUT STAGES, REMOVING AND INSTALLING .
- Spark Plug
- Tightening specification. Refer to TEST DATA AND SPARK PLUGS .
- Before installing the spark plugs check these for damage.
- Removing and installing. SPARK PLUGS, REPLACING
- Bolt
- 8 Nm + 90°
- Replace after removing.
- The tightening specification affect how the knock sensor functions
- Knock Sensor 1 -G61-
- Gold-plated contacts
- Removing and installing. Refer to Knock Sensor 1 -G61-, REMOVING AND INSTALLING .
- Camshaft Position Sensor -G40-
- Replace the O-ring
- Camshaft Position Sensor -G40-, Removing and installing. Refer to Camshaft Position Sensor -G40-, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Engine Speed Sensor -G28-
- Check the O-ring for damage
- Removing and installing. Refer to Engine Speed Sensor -G28-, REMOVING AND INSTALLING .
- Bolt
- 4 Nm + 45°
