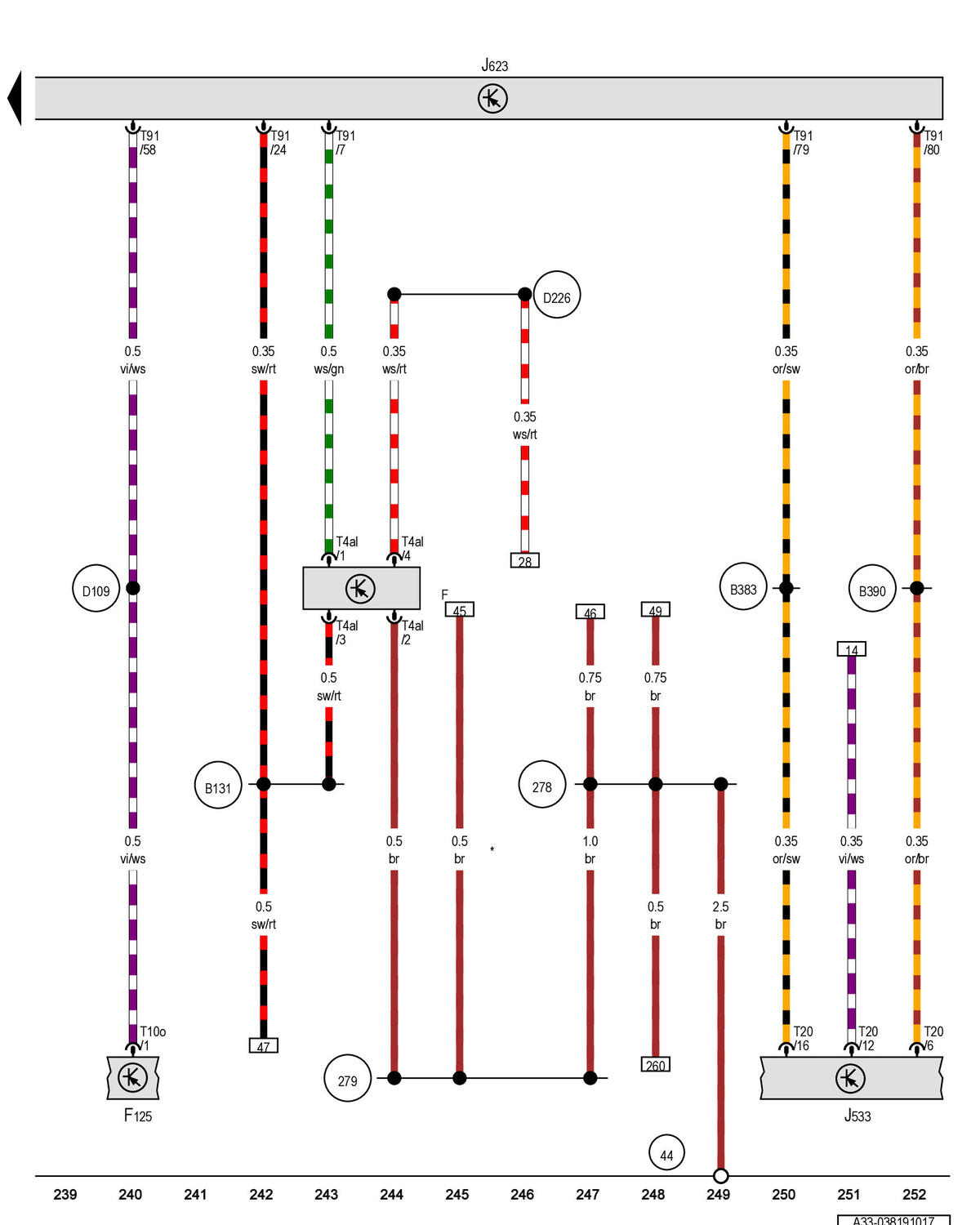

Brake Lamp Switch, Engine/Motor Control Module: Notes

GWWA33-038191017

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
