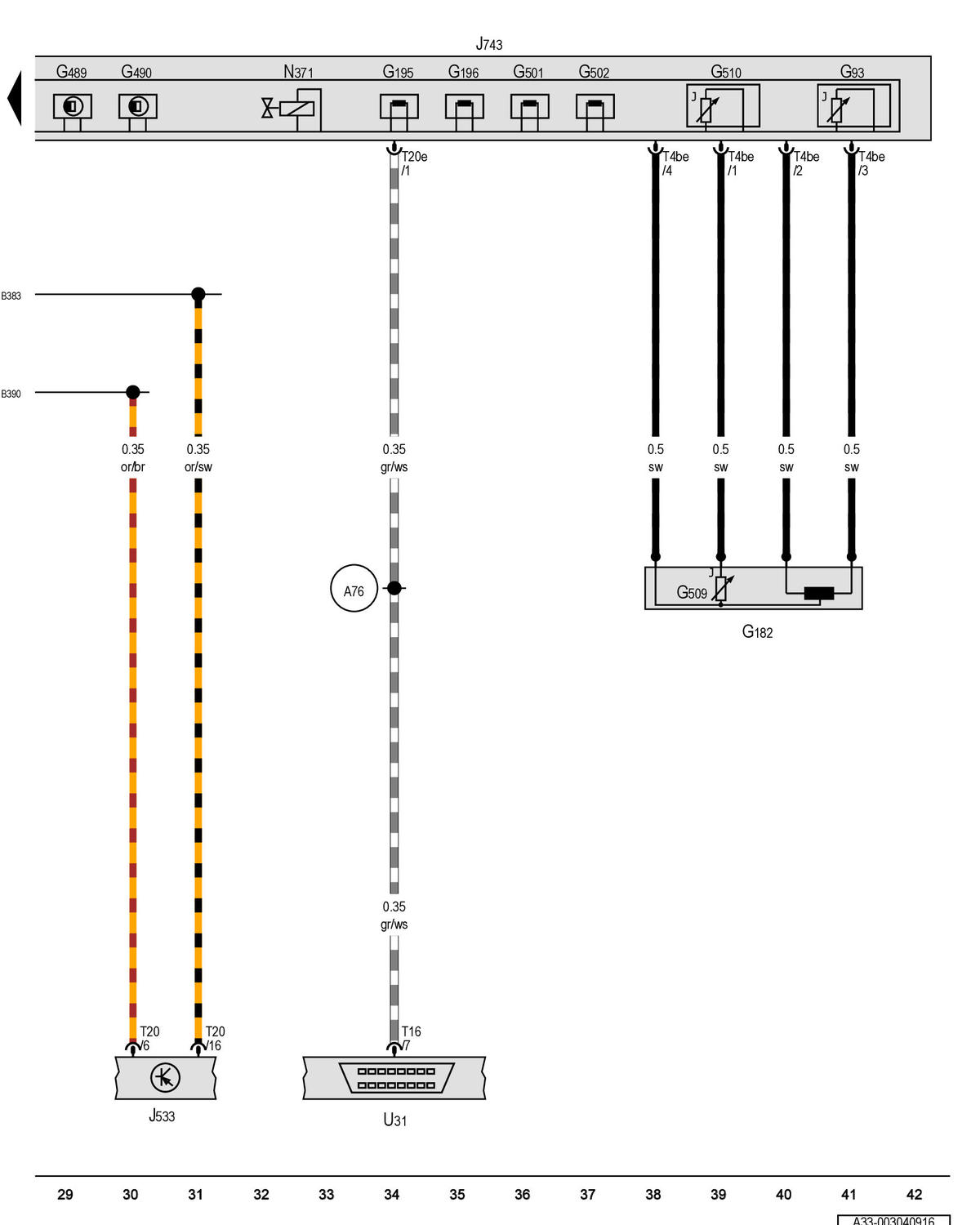

Transmission Input Speed Sensor, Data Bus On Board Diagnostic Interface, Dual-Clutch Transmission MECHATRONIC, Diagnostic Connection: Notes

GWWA33-003040916Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
