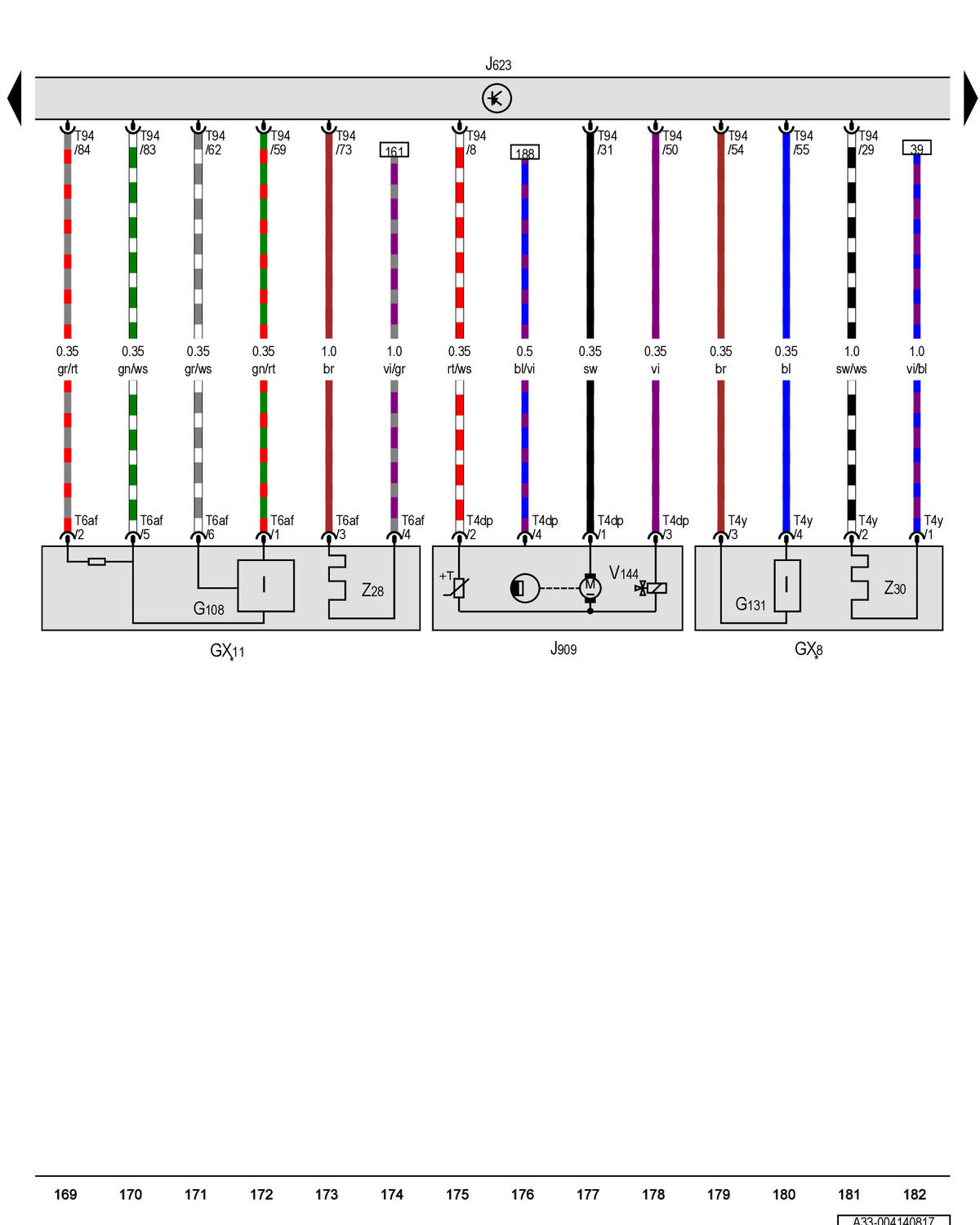

Oxygen Sensor 2 After Catalytic Converter, Oxygen Sensor 2 Before Catalytic Converter, Engine/Motor Control Module, Fuel Tank Leak Detection Control Module: Notes

GWWA33-004140817Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
