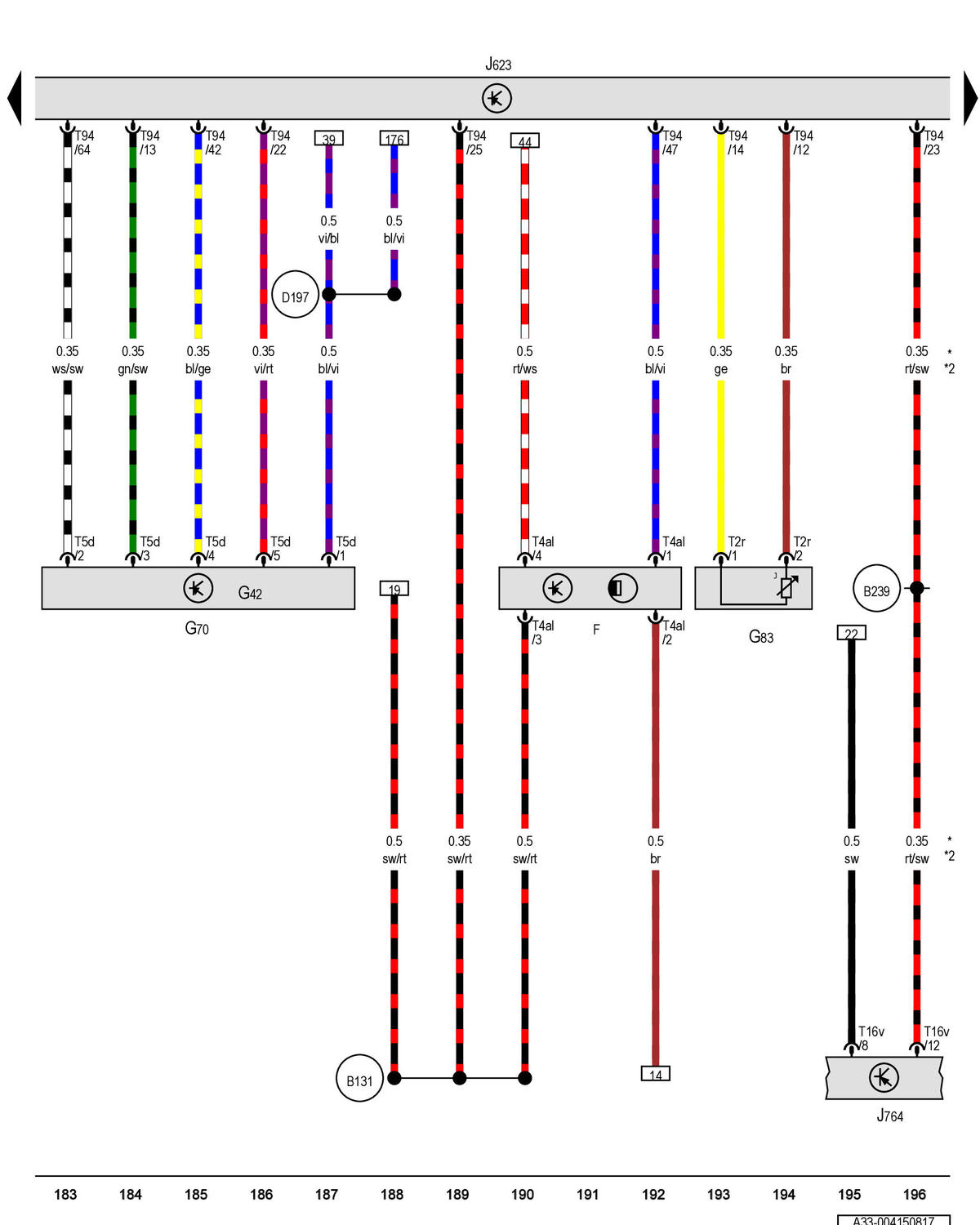

Brake Lamp Switch, Mass Airflow Sensor, Engine Coolant Temperature Sensor On Radiator Outlet, Engine/Motor Control Module: Notes

GWWA33-004150817Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
