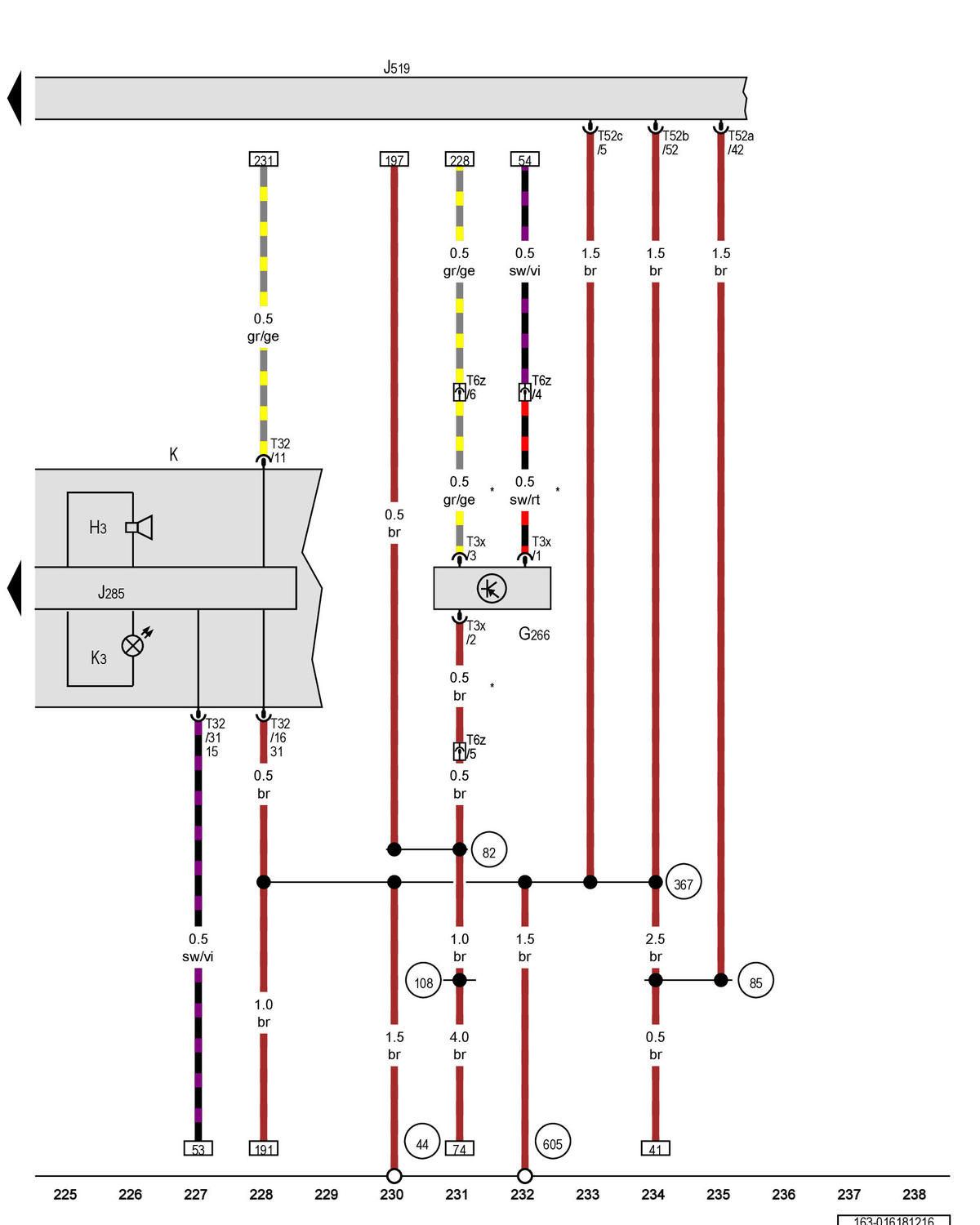

Oil Level Thermal Sensor, Instrument Cluster Control Module, Vehicle Electrical System Control Module
G266
Oil level thermal sensor
H3
Warning buzzer and tone
J285
Instrument cluster control module
J519
Vehicle electrical system control module
K
Instrument cluster
K3
Oil pressure indicator lamp
T2
2-pin connector
T6z
6-pin connector, near the left headlamp
Ground connection on A-pillar, lower left
Ground connection 1 (in left front wiring harness)
Ground connection 1 (in engine compartment wiring harness)
Ground connection 2 (in left front wiring harness)
Ground connection 2 (in main wiring harness)
Ground connection on upper steering column
*Only For Vehicles With Flexible Service Interval Reminder
