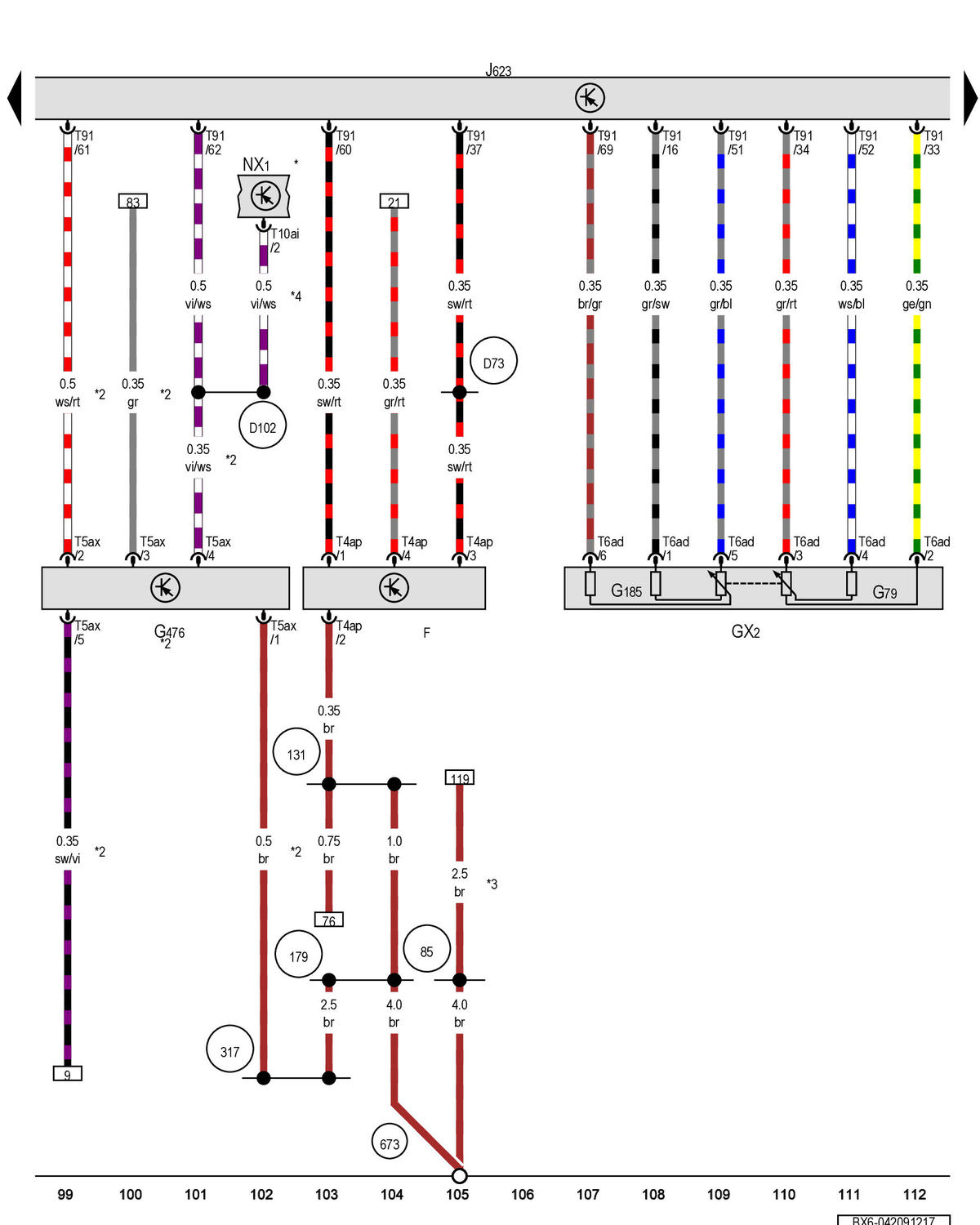

Brake Lamp Switch, Accelerator Pedal Module, Clutch Position Sensor, Engine/Motor Control Module, Transmission: Notes

GWWBX6-042091217Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
